camden cm 550sk – 20,000 users, surface mount, (1) form ‘c’ relays, 12 vdc

CV-550-SPK – CV-550SPKV3: Stand-Alone Proximity Reader and Keypad

CV-550SPKV3: Stand-Alone Proximity Reader and Keypad – Camden Door Controls

SKU: CV-550-SPK
Category: ,
Brands:

Description

CV-550SPKV3: Stand-Alone Proximity Reader and Keypad – Camden Door Controls

Source: https://www.camdencontrols.com/products/CV_550_SPK

Resources:
https://www.camdencontrols.com/pipelines/resource/7154_Access_Control_Technical_Guide.pdf
https://www.camdencontrols.com/pipelines/resource/7155_GZ8UOXHJGMQVZCB7Q83O.pdf
https://www.camdencontrols.com/pipelines/resource/7156_Access_Control_Credentials_Cards_Key_Tags.pdf
https://www.camdencontrols.com/pipelines/resource/7157_0T7ZPDL97TH4B25EU23I.pdf
https://www.camdencontrols.com/pipelines/resource/7152_CV_550SPK_V3_Spec_sheet_R4.pdf
https://www.camdencontrols.com/pipelines/resource/7153_6NLMEWLAV5RS35YNLEKQ.pdf
https://www.camdencontrols.com/pipelines/resource/7140_2_1_1_1_A3_Retail_Store_Back_Door_w_Local_Door_Alarm_Auto_Door_Operator.pdf
https://www.camdencontrols.com/pipelines/resource/7141_55Y2KQJJBRW268QUGOQK.pdf
https://www.camdencontrols.com/pipelines/resource/7142_2_1_1_1_A3_Retail_Store_Back_Door_Door_Alarm_Spanish.pdf
https://www.camdencontrols.com/pipelines/resource/7143_IJCE6XS5V2B07UD4TB9Z.pdf
https://www.camdencontrols.com/pipelines/resource/7144_2_1_1_1_A3_Retail_Store_Back_Door_Door_Alarm_FR.pdf
https://www.camdencontrols.com/pipelines/resource/7145_L81B2UM4L4OM7MK63HDV.pdf
https://www.camdencontrols.com/pipelines/resource/7146_CV_550SPK_Manual.pdf
https://www.camdencontrols.com/pipelines/resource/7147_PH433FM4S6OVVDEIK007.pdf
https://www.camdencontrols.com/pipelines/resource/7148_CV_550SPK_Manual_FR.pdf
https://www.camdencontrols.com/pipelines/resource/7149_L2EUF5CL37XNFGB5BC32.pdf
https://www.camdencontrols.com/pipelines/resource/7150_CV_550SPK_V3_Reference_Manual_R1.pdf
https://www.camdencontrols.com/pipelines/resource/7151_EZJN23PJNDKOIRJCYMZM.pdf

Reviews

There are no reviews yet.

Be the first to review “CV-550-SPK – CV-550SPKV3: Stand-Alone Proximity Reader and Keypad”

Your email address will not be published. Required fields are marked *

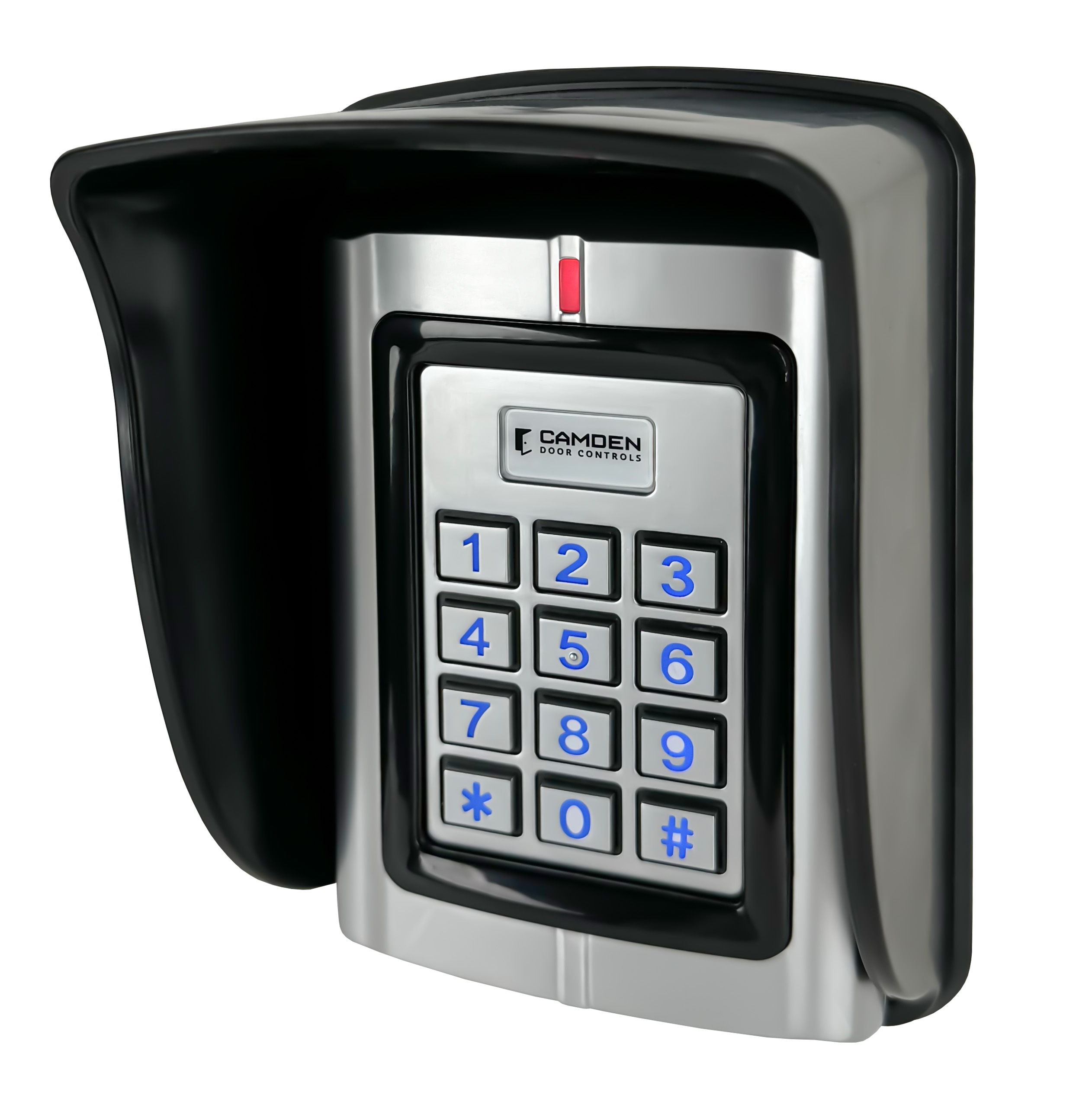

Camden's CV-550SPK V3 is a weather and vandal resistant keypad and proximity reader offering a complete single-door access control solution, with a cast metal housing and illuminated keypad supporting up to 20,000 users. It provides 26 to 66-bit Wiegand input/output, making it compatible with all access control systems that use Wiegand card readers.

Product specifications
Input voltage 10V – 28V (DC or AC)
Protection IP68
Low-voltage wiring Connection count needs review
PreparationConfirm the delivered CV-550SPK V3 revision and use its own surface or single-gang mounting drawing. Mark the selected fixing and harness access locations, provide compatible support and cable clearance, and secure the keypad/case using the appropriate supplied hardware. Reader mode, standalone control and external door/lock/alarm circuits require separate configuration and wiring choices.
ElectricalFor CV-550SPK V3 use the documented AC/DC input range with the correct leads: DC uses red positive and black ground; AC uses red AC1 and light-green AC2. The light-green AC input must not be confused with dark-green Data0. Relay common/NO/NC, request-to-exit, door input, alarm and Wiegand data are separate selected functions. Existing conditional connections remain; no installed count follows from the harness size.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsPower input to keypad (DC): cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Keypad red wire (+) to Keypad black wire (GND) to 10-28 V DC power supply; when Installation configuration is Base product, DC-powered configuration. Red is positive and black is ground.; Power input to keypad (AC alternative): cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Keypad red wire (AC1) to Keypad light green wire (AC2) to 10-28 V AC supply; when Installation configuration is Base product, AC-powered configuration only, as an alternative to DC power. Use the light green wire, not the dark green Data 0 wire.; Relay output to trigger door strike or maglock (separate from power): cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Keypad NO/COM/NC relay wires to Door strike or maglock; when Installation configuration is Base product, used only if the keypad controls a strike or maglock. Relay contacts are rated 1 A @ 30 VDC. Which terminals are used depends on the lock type.; Wiegand output to access controller: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Keypad D0 and D1 wires to Access controller reader terminal; when Installation configuration is Base product, only in the access-controller (Wiegand out) configuration after reader mode is set.; Optional request-to-exit switch and door position switch inputs: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Keypad D_IN/OPEN/GND wires to Push-to-exit switch (CM-30) to Door position switch; when Installation configuration is Optional accessory selected: IF an exit switch or door position switch is selected. These are not part of the base product.; Optional external Wiegand card reader input: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Keypad D0 and D1 wires to External Wiegand reader (CV-7400); when Installation configuration is Optional accessory selected: IF an external card reader is selected. The keypad must be configured for single door mode.; Optional alarm annunciator output: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Keypad ALARM grey wire to Alarm annunciator (CM-AF142SO); when Installation configuration is Optional accessory selected: IF an alarm annunciator is selected.
