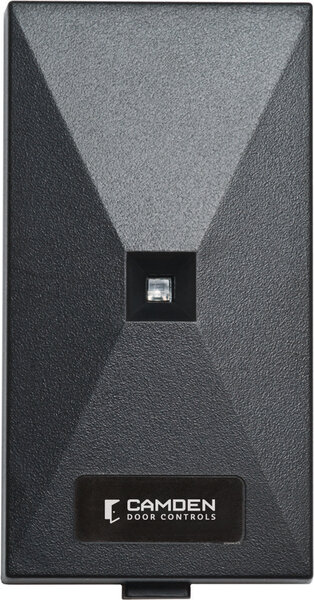

Camden CV-7400 – Narrow compact HID/AWID protocol proximity reader, 4-5in

Narrow compact HID/AWID protocol proximity reader, 4-5in range Variant record generated from manufacturer nomenclature (https://www.camdencontrols.com/products/CV_603); price inherited from product #3634 pending owner confirmation.

SKU: CV-7400
Category: ,
Brands:

Description

Narrow compact HID/AWID protocol proximity reader, 4-5in range Variant record generated from manufacturer nomenclature (https://www.camdencontrols.com/products/CV_603); price inherited from product #3634 pending owner confirmation.

Reviews

There are no reviews yet.

Be the first to review “Camden CV-7400 – Narrow compact HID/AWID protocol proximity reader, 4-5in”

Your email address will not be published. Required fields are marked *

Product specifications
Low-voltage wiring Required
BasisStructured, independently qualified product connection evidence
ElectricalThe exact CV-7400 external Wiegand reader is labelled5-16 VDC in the CV-550SPK V3 single-door interface drawing, with Ground, Data0 and Data1 connections. The same system drawing labels a12-24 VDC source for other equipment; use a compatible12 VDC arrangement or an explicitly approved regulated reader feed, not an assumed24 VDC reader input. Connect the reader only to a compatible Wiegand interface and verify common reference, actual voltage and cable specification. The4-5 inch figure in its product row is read range, not a mounting cutout or cable length.
Electrical wiring requiredYes
Conditional connectionsCV-7400 four-conductor interface in 12 VDC CV-550SPK V3 single-door arrangement: cable runs quantity unspecified; 4 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Select conductor type/gauge from load, distance and exact installation; cable jacket/run quantities unspecified.; endpoints Mounted CV-7400 external reader to CV-550SPK V3 single-door Wiegand interface and compatible 12 VDC feed; when Installation configuration is Only the illustrated single-door external-reader arrangement with 12 VDC selected within the labelled 5-16 VDC reader rating. Includes positive/Ground and D0/D1; other peripherals and upstream wiring are separate.
