Camden CX-247-12 – 7 day timer – 12 V

$75.00

7 day timer – 12 V

SKU: CX-247-12
Category:
Brands:

Description

Series: CX-247

Type: 7 Day Timer

7 day timer – 12 V

Brand: Camden

Manufacturer Part Number: CX-247-12

Source: Camden Controls product page

Reviews

There are no reviews yet.

Be the first to review “Camden CX-247-12 – 7 day timer – 12 V”

Your email address will not be published. Required fields are marked *

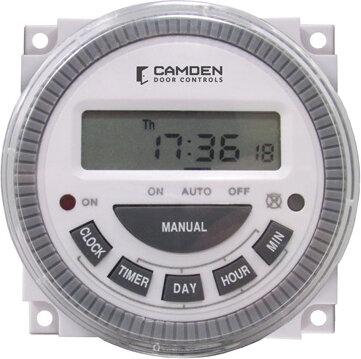

Camden Door Controls is an ultra compact programmable 7 day timer. It features a large digital display, and 16 flexible easy-to-program on/off schedules. An internal permacell keeps the programs and display readable in the event of a power loss or brownout.

Product specifications
Low-voltage wiring Connection count needs review
PreparationMount the timer using the four mounting screws. Use indoors, protected from moisture, extreme temperatures, shock and vibration. Set the clock and required ON/OFF days and times, then leave the timer in AUTO for programmed operation. Confirm scheduled unlocking and relocking with the connected controller or lock.
ElectricalThis exact variant uses 12V AC/DC. Match the supply to the timer label. Connect the supply to the POWER terminals. The timer output is labelled NC, NO and COM; use COM with the selected contact for the controlled low-voltage circuit. When activating an electromechanical device, follow the manual requirement for the supplied varistor across the timer output. The specification sheet gives conflicting contact ratings; confirm the delivered product rating before selecting a load. Contact ratings do not define supply voltage. Field cable gauge, route and physical run quantities depend on the selected circuits.
Conditional connectionsCX-247-12 power input: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field gauge/type, route and physical cable run quantity require installation selection.; endpoints External matched supply to Timer POWER terminals; when Installation configuration is Match the exact voltage variant.; CX-247-12 selected NO output: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field gauge/type, route and physical cable run quantity require installation selection.; endpoints Timer COM and NO to External low-voltage controlled circuit; when Installation configuration is NO selection only; NC alternative and load logic require installation choice.
