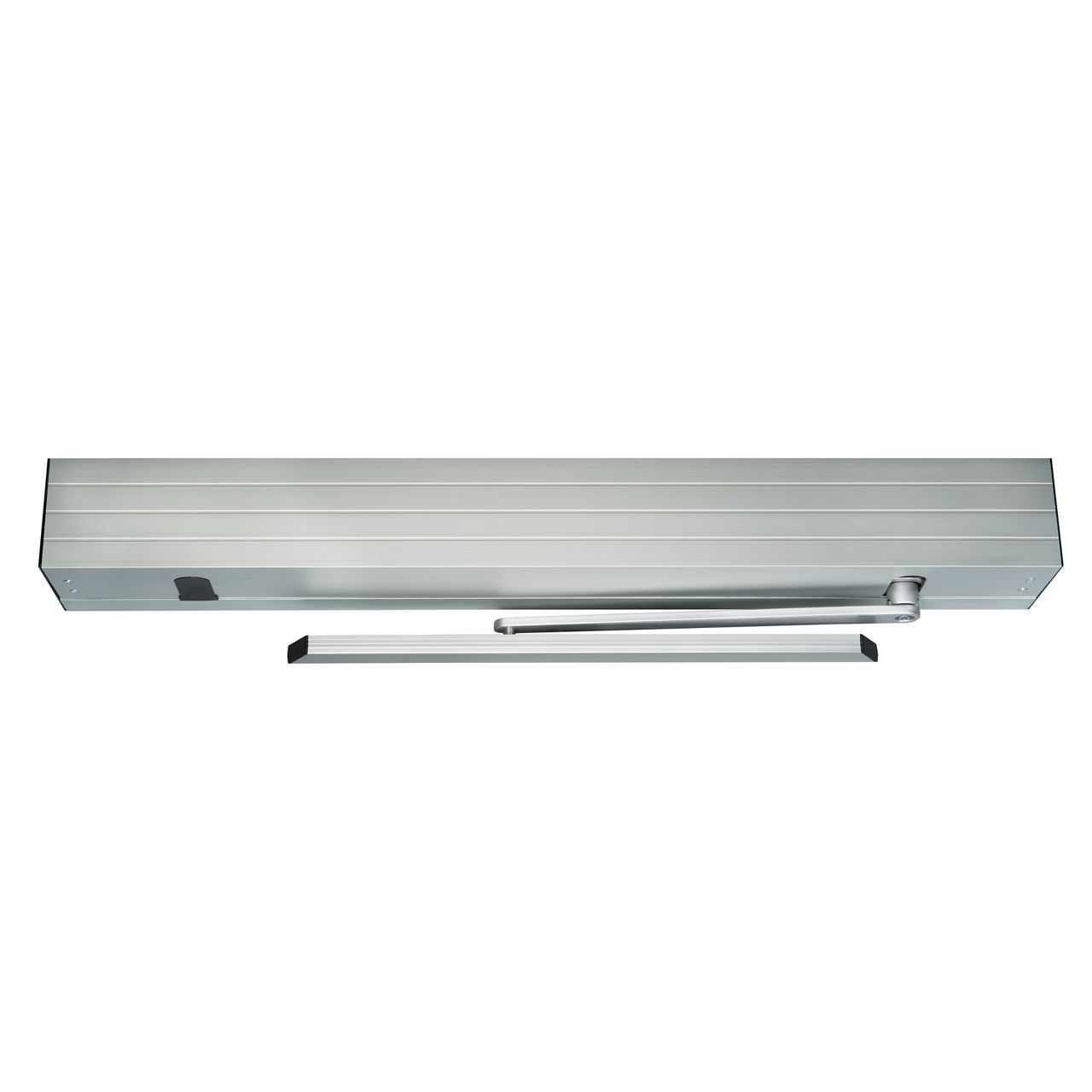

Record SS8200 SimpleSwing Heavy Duty Low Energy Swing Door Operator

$350.00

record SimpleSwing SS8200 series heavy-duty low-energy swing door operator: surface applied, push or pull arm, non-handed, doors up to 400 lb, built-in electric strike interface, ANSI/BHMA 156.19, UL325.

SKU: SS8200
Category:

Reviews

There are no reviews yet.

Be the first to review “Record SS8200 SimpleSwing Heavy Duty Low Energy Swing Door Operator”

Your email address will not be published. Required fields are marked *

record SimpleSwing SS8200 series heavy-duty low-energy swing door operator: surface applied, push or pull arm, non-handed, doors up to 400 lb, built-in electric strike interface, ANSI/BHMA 156.19, UL325.

Product specifications
Low-voltage wiring Connection count needs review
PreparationThe door must move freely through its full opening and closing rotation, and the frame must provide a stable structural base for automatic operation. Select the applicable arm layout and verify dimensions and clearances before installation. Determine the electrical wiring method and activation arrangement before preparing the jambs.
ElectricalIncoming AC service is specified at 60 Hz and 15 A. The SS8200 sell sheet labels it 120 VAC; the installation manual labels the primary service 115 VAC. Confirm the unit nameplate before connection. These are incoming-service specifications, not operator running-current consumption.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsSS8200 operator primary mains input and protective earth: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating Incoming AC service is specified at 60 Hz and 15 A. The SS8200 sell sheet labels it 120 VAC; the installation manual labels the primary service 115 VAC. Confirm the unit nameplate before connection. These are incoming-service specifications, not operator running-current consumption.; endpoints Building mains power supply to Operator power-supply terminals and protective-earth connection; when Installation configuration is Base operator: connect line to L and neutral to N; provide protective earth at the adjacent grounding tab and screw. The second L/N junction is for dual-operator systems and does not establish a total cable-run quantity. Optional control, safety and lock circuits depend on the installation.
