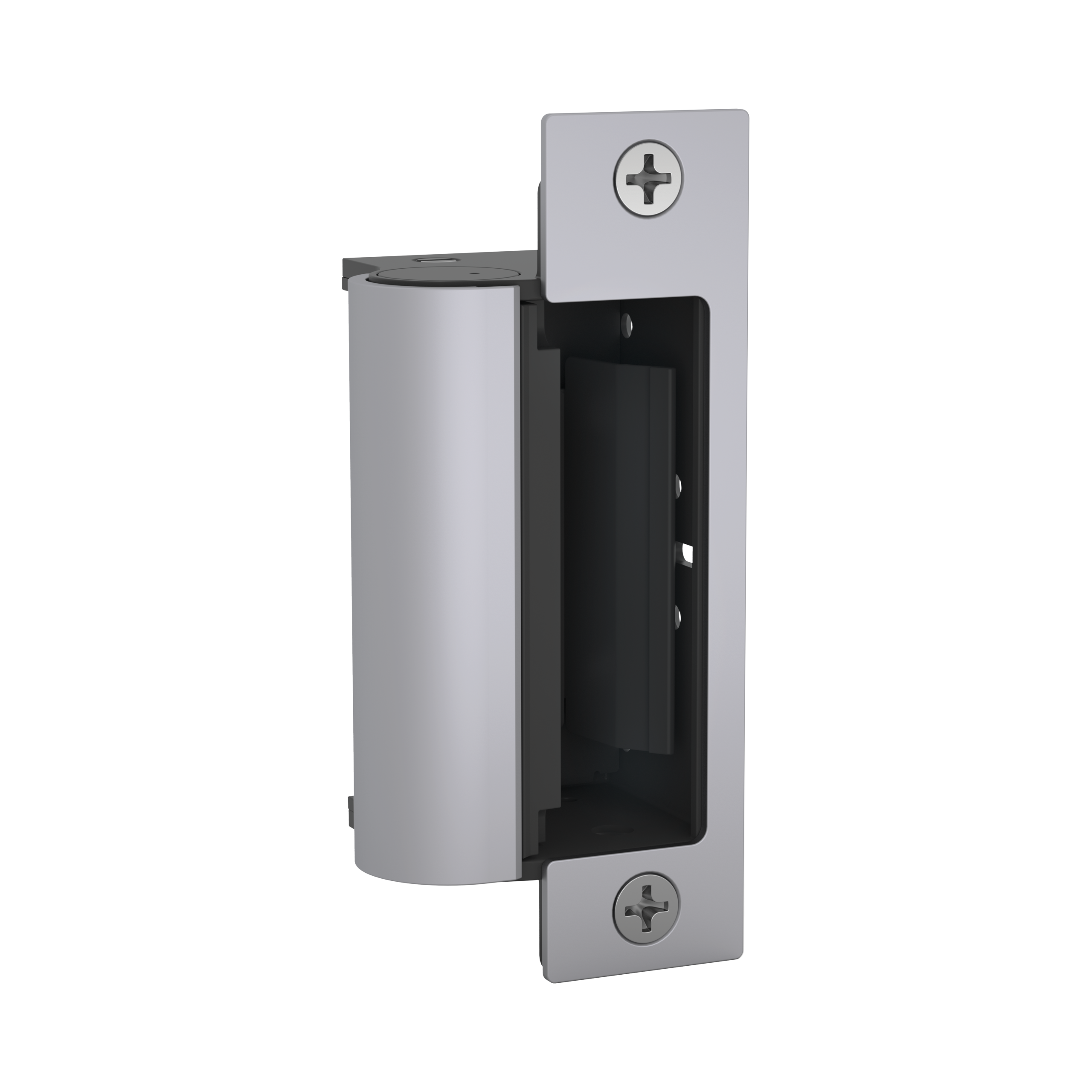

HES 1006 Series

$50.00

The strongest, most versatile electric strike available.

SKU: HES-1006-SERIES
Category:
Brands:

Description

The strongest, most versatile electric strike available.

Brand: HES

Category: Electric Strikes

List Price Range: $732 – $1,047

Source: HES product page

Additional information

finish

605, 606, 612, 629, 630
fail_mode

fail safe, fail secure
voltage

12/24VDC

Reviews

There are no reviews yet.

Be the first to review “HES 1006 Series”

Your email address will not be published. Required fields are marked *

The HES 1006 Series is described by the manufacturer as the strongest and most versatile electric strike available; its dual interlocking plunger design and heavy-duty stainless steel construction let it exceed every standard developed for electric strikes. It accommodates a deadbolt up to 1" and is fail secure standard.

Product specifications
Voltage 12/24
Body Material Stainless steel
Grade Grade 1
Static Strength (lbs) 2,500 (fail secure)
Dynamic Strength (ft-lbs) 350 (fail secure)
Endurance (cycles) 1,000,000
Fail Safe | Fail Secure Fail Safe/ Fail Secure
Monitoring Options Latchbolt Strike Monitor|Latchbolt Monitoring
Monitoring Installation Factory Configured
Latchbolt Accommodation Up to 3/4" (deadbolt up to 1")
Lock Type Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
Adjustability Horizontal
Frame Material Metal|Wood
Strike Body Depth (in) 1.6875
Strike Body Height (in) 3.475
Fire Rating – Single Door 3 Hour (Fail Secure Only)
Fire Rating – Double Door 1.5 Hour (Fail Secure Only)
Included in Box 1006 Electric Strike Body, Trim Enhancer with Screws #6-32 x 1/4" (2), 12 & 24 Volt Plug In Connectors, Keeper Shims with Screws #4-40 x 1/4" (2)
Low-voltage wiring Connection count needs review
PreparationThe strike body has a documented depth of 1-11/16 in (43 mm). The strike body is ordered without faceplates, so a faceplate matched to the lockset must be selected separately unless a complete pack is ordered.
ElectricalThe continuous-duty solenoid ratings are 12 VDC or 24 VDC. Select the plug-in connector marked for the actual system voltage and verify voltage before connection. The black pigtail wire is negative. Optional LBM/LBSM monitoring circuits are separate from solenoid power.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsStrike power connection for 1006: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Match the manufacturer voltage and duty specifications; size actual conductors using the installation-specific length/current table. Nonnumeric installation context (does not broaden the selected count): Use the actual manufacturer voltage and operating-mode configuration. The power connection is separate from optional monitoring. Internal coil links, pigtail lead count and controller contacts do not establish one total field conductor count or cable-run quantity. Use the manufacturer supply/duty specification for the exact model; actual cable length and gauge are installation-specific.; endpoints External power supply and selected control contact to HES 1006 selected voltage-matched strike power-input connector; when Installation configuration is Selected12 or24VDC fail-secure1006 parallel control example at strike power interface only. Two conductors terminate at the strike power interface only. Internal coil links, optional monitors, earth and field cable/run/jacket quantities are excluded. This is not a universal total for other configurations.
