de1200 – cx de1200 series: exit watch™ delayed egress magnetic locks

DE1200 – CX-DE1200 Series: Exit Watch™ Delayed Egress Magnetic Locks

$25.00

CX-DE1200 Series: Exit Watch™ Delayed Egress Magnetic Locks – Camden Door Controls

SKU: DE1200
Category: , ,
Brands:

Description

CX-DE1200 Series: Exit Watch™ Delayed Egress Magnetic Locks – Camden Door Controls

Source: https://www.camdencontrols.com/category/locking/products/DE1200

Resources:
https://www.camdencontrols.com/pipelines/resource/3081_CX_DE1200_Manual_R7.pdf
https://www.camdencontrols.com/pipelines/resource/3082_GYMRELPSIQ1G5YXMSNPC.pdf
https://www.camdencontrols.com/pipelines/resource/3083_CX_DE1200_Manual_FR.pdf
https://www.camdencontrols.com/pipelines/resource/3084_1VRKCDY2IM6X7ERE4FV4.pdf
https://www.camdencontrols.com/pipelines/resource/3085_CX_DE502S0_Annunciator_Manual_R1.pdf
https://www.camdencontrols.com/pipelines/resource/3086_A5HALE51ME1Q167ACEA7.pdf
https://www.camdencontrols.com/pipelines/resource/3087_CX_DE502S0_Annunciator_Manual_R1_FR.pdf
https://www.camdencontrols.com/pipelines/resource/3088_PONB4YVY59ITD19SULBH.pdf
https://www.camdencontrols.com/pipelines/resource/3089_CX_DESPK15_FM_SM_Manual.pdf
https://www.camdencontrols.com/pipelines/resource/3090_04ZN5GZ1FS5KVHLONKSY.pdf
https://www.camdencontrols.com/pipelines/resource/3091_CX_DESPK15_FM_SM_Manual_FR.pdf
https://www.camdencontrols.com/pipelines/resource/3092_J1WDCAGOXH50BYQ5JLIQ.pdf
https://www.camdencontrols.com/pipelines/resource/3093_CX_DESPK15_54_55I_Manual.pdf
https://www.camdencontrols.com/pipelines/resource/3094_JQ1U58S5RG1JE8KPG88J.pdf
https://www.camdencontrols.com/pipelines/resource/3095_CX_DESPK15_54_55I_Manual_FR.pdf
https://www.camdencontrols.com/pipelines/resource/3096_K32AYRP7UPM4FWQT6XRY.pdf
https://www.camdencontrols.com/pipelines/resource/3097_CX_DE1220_Double_Door_Main_and_Tandem_Lock_Manual_FR.pdf
https://www.camdencontrols.com/pipelines/resource/3098_LNPIHL2K0T2PSA1N9W6T.pdf
https://www.camdencontrols.com/pipelines/resource/3099_CX_DE1220_Double_Door_Main_and_Tandem_Lock_Manual.pdf
https://www.camdencontrols.com/pipelines/resource/3100_C1YHJZA2SBHZUQHGKVBC.pdf
https://www.camdencontrols.com/pipelines/resource/3101_CX_DESPK_Speaker_Manual_R2.pdf
https://www.camdencontrols.com/pipelines/resource/3102_YH1DIO3BOTGCCBHHMXDP.pdf
https://www.camdencontrols.com/pipelines/resource/3103_CX_DESPK_Speaker_Manual_R1_FR.pdf
https://www.camdencontrols.com/pipelines/resource/3104_ERIJAIBNKN5T5CY29ICL.pdf
https://www.camdencontrols.com/pipelines/resource/3105_CX_DE1200_Spec_Sheet_R4_FR.pdf
https://www.camdencontrols.com/pipelines/resource/3106_C65ATP982EGTF7TE8BY4.pdf
https://www.camdencontrols.com/pipelines/resource/3107_CX_DE1200_Spec_Sheet_R4_Spanish.pdf
https://www.camdencontrols.com/pipelines/resource/3108_7LBOV4JCVJJ24D3ZAVWY.pdf
https://www.camdencontrols.com/pipelines/resource/3109_CX_DE1200_Spec_Sheet_R6.pdf
https://www.camdencontrols.com/pipelines/resource/3110_DOINAFBZ04OBF1KU6BTD.pdf
https://www.camdencontrols.com/pipelines/resource/3151_CX_DE1200_Cross_Reference_Chart.pdf
https://www.camdencontrols.com/pipelines/resource/3152_RX0M8Q7ETARI100369IH.pdf
https://www.camdencontrols.com/pipelines/resource/3153_CX_DE1200_Product_Comparison_Chart.pdf
https://www.camdencontrols.com/pipelines/resource/3154_PBDU2BRUFZ8IJHQ4DT6W.pdf
https://www.camdencontrols.com/pipelines/resource/3155_Delayed_Egress_Application_Guide.pdf
https://www.camdencontrols.com/pipelines/resource/3156_MXR5MG52SJQIT5FIT48F.pdf
https://www.camdencontrols.com/pipelines/resource/3157_Delayed_Egress_Application_Guide.pdf
https://www.camdencontrols.com/pipelines/resource/3158_3Q4B1F7RH6FBPMMQXV0M.pdf

Reviews

There are no reviews yet.

Be the first to review “DE1200 – CX-DE1200 Series: Exit Watch™ Delayed Egress Magnetic Locks”

Your email address will not be published. Required fields are marked *

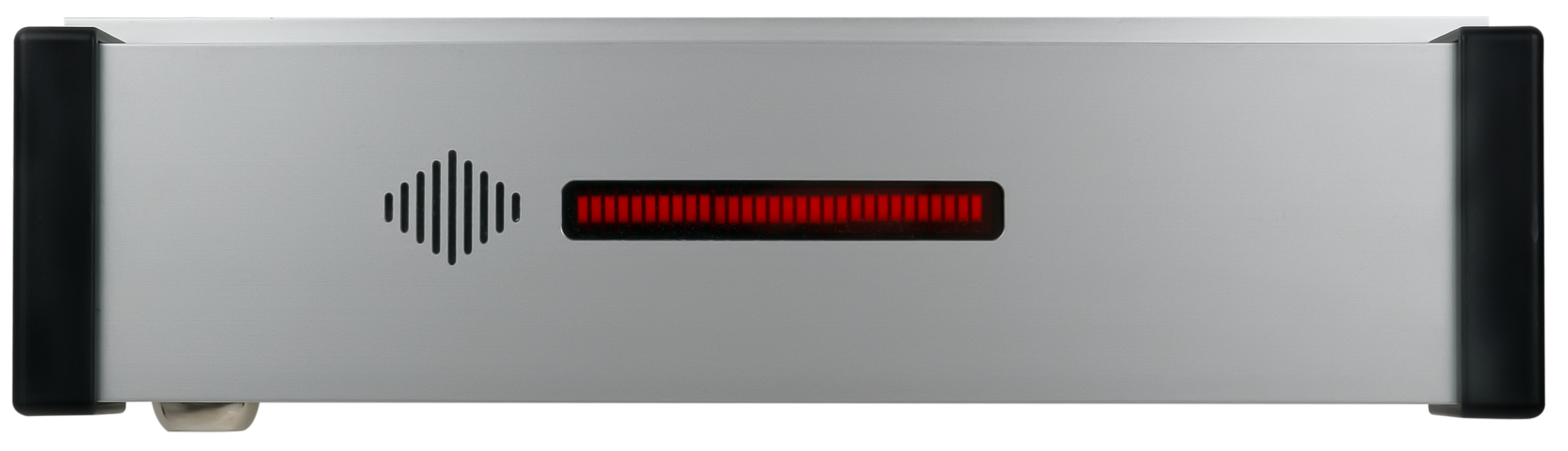

The Camden CX-DE1200 Series is a delayed-egress electromagnetic lock intended for indoor, out-swing door applications. When an unauthorized exit is attempted, the door delays opening for 15 or 30 seconds while an LED bar-segment display and voice messages count down the remaining time, and a signal from the fire/life safety system releases the lock promptly during an emergency.

Product specifications
Voltage 12/24V DC +/- 10% (Auto Sensing)
Current draw 600mA / 350mA
Lock output 12/24 VDC, 1A
Lock status relay rating 30 VDC, 2A, 1 pF
Holding force Up to 1,200 lb (544 kg)
Temperature range 32°F – 131°F (0°C to 55°C)
Dimensions Armature plate: 2-5/8"H x 11"W x 1"D (68mm x 280mm x 25mm); Lock: 3"H x 11"L x 3"D (76mm x 280mm x 76mm)
Low-voltage wiring Required
BasisStructured, independently qualified product connection evidence
PreparationThe lock is mounted at the upper corner of an out-swing door, with a mounting plate on the frame and an armature housing on the door. Holes are drilled from the template, including a 1/2 in. cable access hole in the door. A UL 294 or UL 603 Class 2 12/24 VDC supply is required and must be mounted inside the secured area.
ElectricalThe lock needs a 12/24 VDC power input and a fire alarm system connection. Optional inputs and outputs include Ex-Trig, Reset, R-Exit, Bypass, status outputs, and an external speaker. The text-only evidence does not give cable run counts or conductor counts.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connections12/24 VDC power input to the lock: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Class 2 power supply to CX-DE1200 PWR terminals; when Installation configuration is Base product, required. Auto-sensing 12/24 VDC +/-10%, Class 2 UL 294 or UL 603 listed supply; the cable count is not supported from text.; Fire alarm input (normally closed, supervised): cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Fire alarm panel or smoke detector dry contact to Fire P terminals; when Installation configuration is Base product; the manual says the unit must be connected to a fire alarm system. The J10 jumper is removed only if a fire panel NC contact is connected to Fire P.; Optional remote reset, R-Exit, bypass, external trigger and status outputs: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Keypad, key switch, push bar, remote reset station or monitoring equipment to CX-DE1200 control terminals; when Installation configuration is Optional accessory selected: IF accessory or monitoring device selected. These are optional circuits and are not needed for the base lock.; Power supply to lock controller Pwr terminals (12/24 VDC): cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Power supply to CX-DE1200 controller board Pwr terminals; when Installation configuration is Single door configuration. The power supply must be UL 294 or UL 603 listed and Class 2 power-limited, and the input polarity must be observed. The diagram shows a 2-core cable between the power supply and the lock. This is a diagram label, and the cable count is not otherwise confirmed, so no quantity is given.; Fire alarm panel dry-contact input to Fire P terminals: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Fire alarm panel dry contact (NC) to Fire P terminals; when Installation configuration is Required by the manufacturer's statement that the product must be connected to a fire alarm system. Remove jumper J10 only when a fire panel or smoke detection dry contact (NC) is connected to the Fire P terminals. The diagram labels a 2-core cable from the fire panel. The cable count for this configuration is not otherwise documented.; Push bar or exit device trigger to Ex-Trig terminals: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Push bar / exit device momentary NO dry contact to Ex-Trig terminals; when Installation configuration is Optional accessory selected: IF a push bar or exit device is selected as the trigger sensor. Connect only a normally open momentary dry contact. A voltage or wet output may damage the lock.; Remote reset or bypass key switch (CM-1200) to Reset / R-Exit / Bypass terminals: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints External key switch NO/COM to Reset, R-Exit or Bypass terminals; when Installation configuration is Optional accessory selected: IF an external reset or bypass key switch or a reset switch is selected. Connect only a normally open momentary dry contact. The built-in key switch needs no field cable.; Keypad (CM-120i) relay and power connections to the controller: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints CM-120i keypad (power, GND, Main Rly and AUX Rly NO/COM) to Controller R-Exit / Bypass terminals and power; when Installation configuration is Optional accessory selected: IF the optional keypad is selected. The terminal-to-terminal assignment and the cable count are not determinable from the supplied text, so no counts are given.; External speaker to Ex-Spkr terminals: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints External speaker 8 ohm 1.5 W to Ex-Spkr terminals; when Installation configuration is Optional accessory selected: IF an external speaker is selected. The diagram marks it as optional.; Auxiliary lock (CX-DE1201) for a double leaf door: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints CX-DE1201 auxiliary lock to Controller board; when Installation configuration is Optional accessory selected: IF a double leaf door with an auxiliary lock is selected. The Lock Output terminal is marked not to be used for CX-DE1200 in the single door configuration.
