Model 8310-866FLA. Installer-grade transmitter.

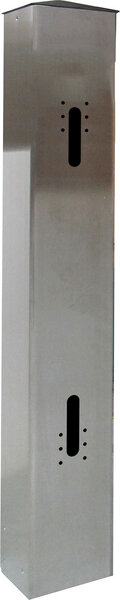

A powder coated steel 42˝ x 4˝ x
6˝: Bollard Post, mounting base
pre prepped for the 8310-836T
Includes 8310-866 CAP, 2
mounting screws & spacer for
installation
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
| Brand | LCN |
|---|
LCN 8310 Series is a modular system of touchless and push-plate door actuators, wireless transmitter/receiver sets, mounting boxes, escutcheons, weather/trim rings, safety sensors, and accessory kits used to remotely actuate LCN automatic swing-door operators (e.g., 4630/4640, 7900 pneumatic auto-equalizer, 9100 Benchmark, Senior Swing 2800/9500, Mid Swing 2900/9700 series). Touchless actuators and hardwired push plates require a wired, low-voltage power/control connection back to the door operator control box; most are also compatible with a 433 MHz or 900 MHz wireless transmitter/receiver pair for wireless actuation signaling instead of a run of activation wire. A subset of push plates (8310-852WP/853WP) are fully wireless/battery powered with no field control wiring at the plate itself (only the receiver, sold separately, is wired to the operator).
| Touchless actuator supply (8310-813) | 12-24 VAC ±10% or 12-24 VDC +30%/-10%, SELV-compatible power supplies only; power consumption < 1.5W; output is a voltage-free relay (max 60VDC/125VAC, 1A resistive, 30W) |
|---|---|
| 900 MHz receiver input voltage (8310-880) | 12-24 VAC/VDC; relay contact rating 1.0A@30VDC, 0.3A@60VDC, 0.5A@125VAC |
| Wireless transmitter power consumption (900 MHz) | 30mA (standard TX) / 40mA (RX) / 22mA (retrofit TX) |
| Receiver capacity | up to 74-75 transmitters per standard receiver; unlimited for 'universal' mode |
| Low-voltage wiring | Connection count needs review |
| Preparation | The bollard post is a powder coated steel post with a mounting base pre-prepped for the 8310-836T actuator. It ships with the 8310-866CAP cap, 2 mounting screws and a spacer. It requires a separately specified full length actuator (8310-836T or 8310-836TW) to be installed. Anchoring details for the flange base are not documented in the supplied evidence. |
| Preparation required | Yes |
