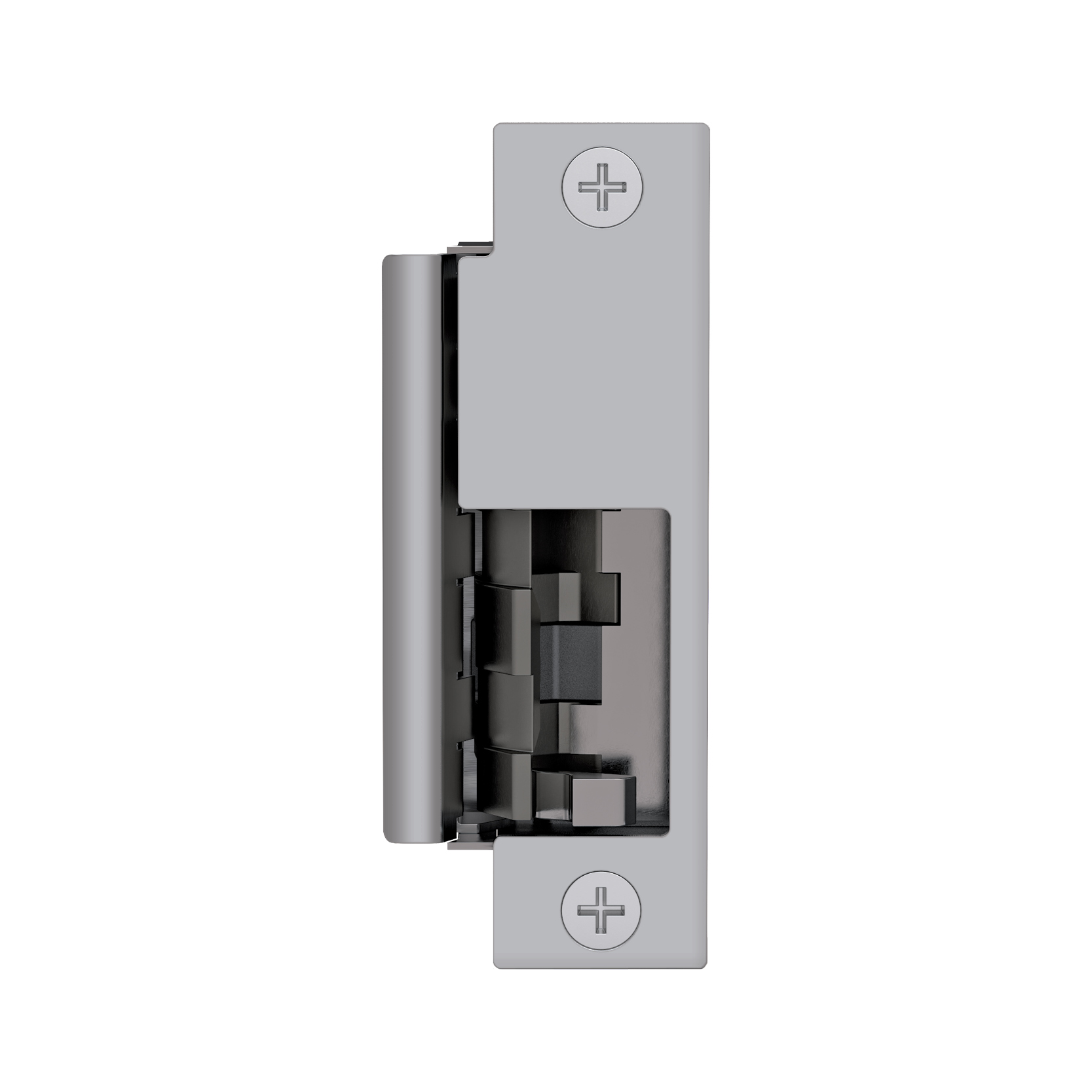

HES 8500 Series

$50.00

The fire-rated, concealed electric strike solution for mortise locksets.

SKU: HES-8500-SERIES
Category:
Brands:

Description

The fire-rated, concealed electric strike solution for mortise locksets.

Brand: HES

Category: Electric Strikes

List Price Range: $618 – $967

Source: HES product page

Additional information

finish

605, 606, 612, 629, 630

Reviews

There are no reviews yet.

Be the first to review “HES 8500 Series”

Your email address will not be published. Required fields are marked *

The HES 8500 Series is a compact, high-performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt, requiring no cutting to the face of the frame.

Product specifications
Voltage 12/24
Body Material Stainless steel
Static Strength (lbs) 1,500
Dynamic Strength (ft-lbs) 70
Endurance (cycles) 1,000,000
Fail Safe | Fail Secure Field selectable fail safe/fail secure
Monitoring Installation Factory Configured
Monitoring Options Latchbolt Monitoring|Latchbolt Strike Monitor
Lock Type Mortise Lock
Adjustability Horizontal
Surface Mounting No Cutting Required
Frame Material Metal|Wood
Latchbolt Accommodation Up to 3/4" mortise latchbolts
Fire Rating – Single Door 3 Hour (Fail Secure Only)
Strike Body Depth (in) 1.3125
Strike Body Height (in) 4.875
Included in Box 8500 Series Electric Strike Body, Horizontal Lockdown Shims, #4-40 Screws (2), 12 & 24 Volt Plug In Connectors
Low-voltage wiring Connection count needs review
PreparationVerify the opening is plumb and square and inspect latchbolt condition. Select the deadlatch-platform option for a listed compatible lockset brand and model. The strike fits the existing 4-7/8-inch frame preparation with minimal preparatory work; remove the dustbox if necessary and allow space behind the strike so the wires are not pinched.
ElectricalSolenoid operation is 12 VDC or 24 VDC for continuous duty. AC operation is 12 VAC, 16 VAC or 24 VAC only for intermittent duty, with 10% maximum duty cycle and 2 minutes maximum on-time. Select the voltage-labelled connector for the actual system voltage and verify the input with a multimeter before connection. Optional monitoring contacts are separate from strike power.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsStrike power connection for 8500: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Match the manufacturer voltage and duty specifications; size actual conductors using the installation-specific length/current table. Nonnumeric installation context (does not broaden the selected count): Use the actual manufacturer voltage and operating-mode configuration. The power connection is separate from optional monitoring. Internal coil links, pigtail lead count and controller contacts do not establish one total field conductor count or cable-run quantity. Use the manufacturer supply/duty specification for the exact model; actual cable length and gauge are installation-specific.; endpoints External power supply and selected control contact to HES 8500 selected voltage-matched strike power-input connector; when Installation configuration is Selected matching12 or24VDC pigtail at8500 external power interface only; installed mode/optional monitors remain separate. Two conductors terminate at the strike power interface only. Internal coil links, optional monitors, earth and field cable/run/jacket quantities are excluded. This is not a universal total for other configurations.
