HES 5200 Series

$50.00

The Grade 1 solution with horizontal adjustability.

SKU: HES-5200-SERIES
Category:
Brands:

Description

The Grade 1 solution with horizontal adjustability.

Brand: HES

Category: Electric Strikes

List Price Range: $241 – $398

Source: HES product page

Additional information

finish

605, 606, 612, 629, 630

Reviews

There are no reviews yet.

Be the first to review “HES 5200 Series”

Your email address will not be published. Required fields are marked *

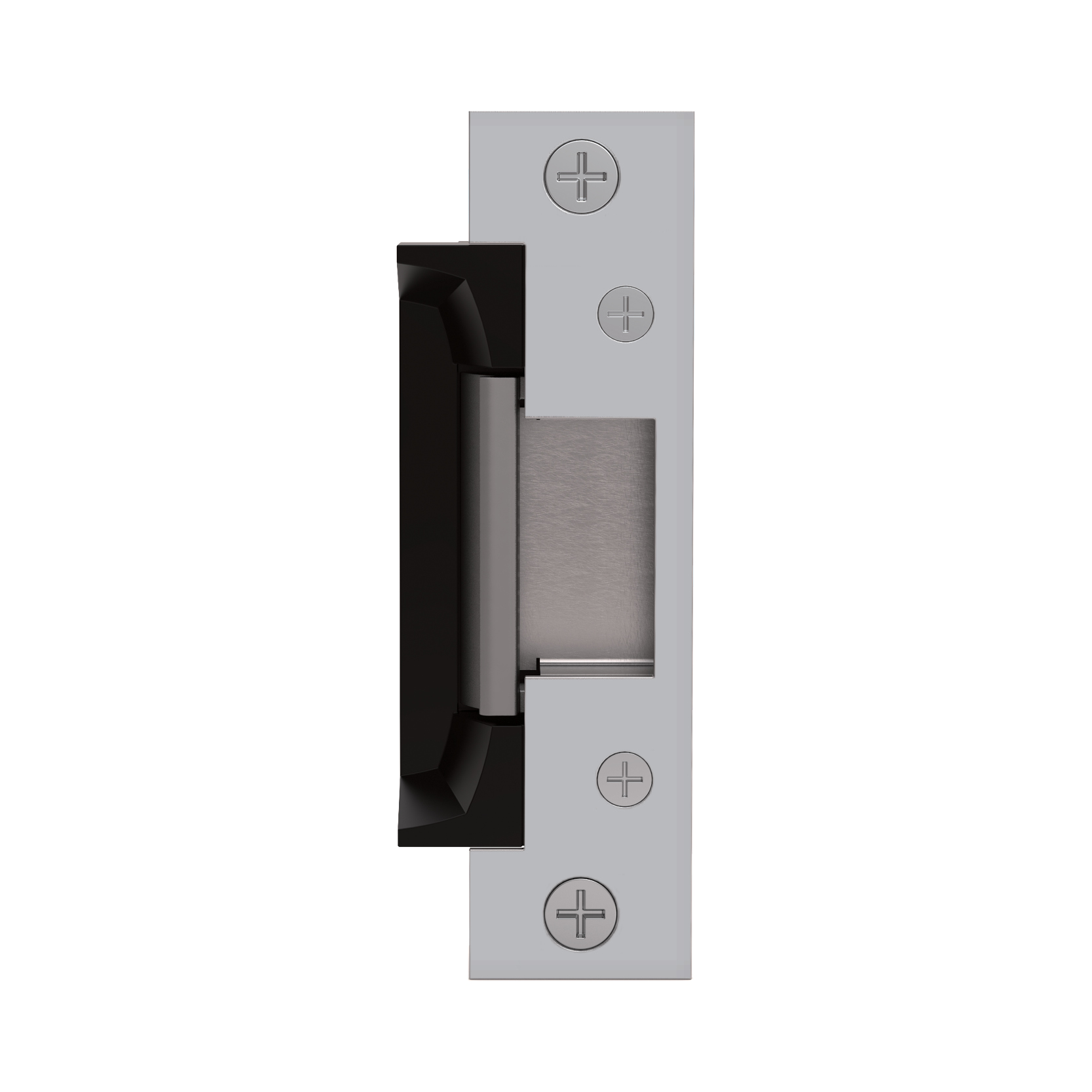

The HES 5200 Series electric strike features an in-frame horizontal adjustable design to simplify installation, letting the installer adjust the strike opening to accommodate the horizontal position of the latchbolt after the strike has been installed.

Product specifications
Voltage 12/24
Static Strength (lbs) 1,500
Dynamic Strength (ft-lbs) 70
Endurance (cycles) 1,000,000
Fail Safe | Fail Secure Field selectable fail safe/fail secure
Grade Grade 1
Monitoring Installation Factory Configured
Monitoring Options Latchbolt Monitoring|Latchbolt Strike Monitor
Lock Type Cylindrical Lock
Adjustability Horizontal
Frame Material Metal|Wood
Latchbolt Accommodation Up to 3/4" (5/8"-3/4", 3/4" with 1/8" door gap)
Strike Body Depth (in) 1.1875
Strike Body Height (in) 4.87
Strike Body Width (in) 1.25
Included in Box 5200 Electric Strike Body, Trim Enhancer & Screws (#4-40 x 1/8"), 12 & 24 Volt Plug In Connectors
Low-voltage wiring Required
BasisStructured, independently qualified product connection evidence
PreparationPrepare the frame using the cutout template for the selected lockset and faceplate. Install the strike in the jamb cutout using the faceplate mounting screws. Check latchbolt operation and use the manufacturer horizontal adjustment procedure if needed.
ElectricalSolenoid ratings: 12 VDC or 24 VDC for continuous duty; 12-16 VAC or 24 VAC only for intermittent duty, limited to 10% duty cycle and 2 minutes maximum on-time. Use the appropriate voltage-labelled connector and verify input voltage before connecting. Select the actual fail-secure or fail-safe configuration and treat optional monitoring circuits separately.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsOptional Latchbolt Strike Monitor (LBSM) switch: Brown common, Blue NO, Yellow NC: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints LBSM switch leads to Access control system / controller input; when Installation configuration is Optional accessory selected: IF a Latchbolt Strike Monitor is used (optional). Contact rating 500 mA @ 30 V. Terminations are per the access control panel instructions.; Strike supply connection: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Match the manufacturer voltage and duty specifications; size actual conductors using the installation-specific length/current table. Nonnumeric installation context (does not broaden the selected count): Use the connector for the selected manufacturer supply-voltage and duty configuration. Optional monitor circuits and internal coil-configuration links do not establish the total field cable count.; endpoints External power supply and selected control contact to HES 5200 selected voltage-matched strike power-input connector; when Installation configuration is Selected12 or24VDC fail-secureNO branch at5200 strike interface; optional monitors excluded. Two conductors terminate at the strike power interface only. Internal coil links, optional monitors, earth and field cable/run/jacket quantities are excluded. This is not a universal total for other configurations.
