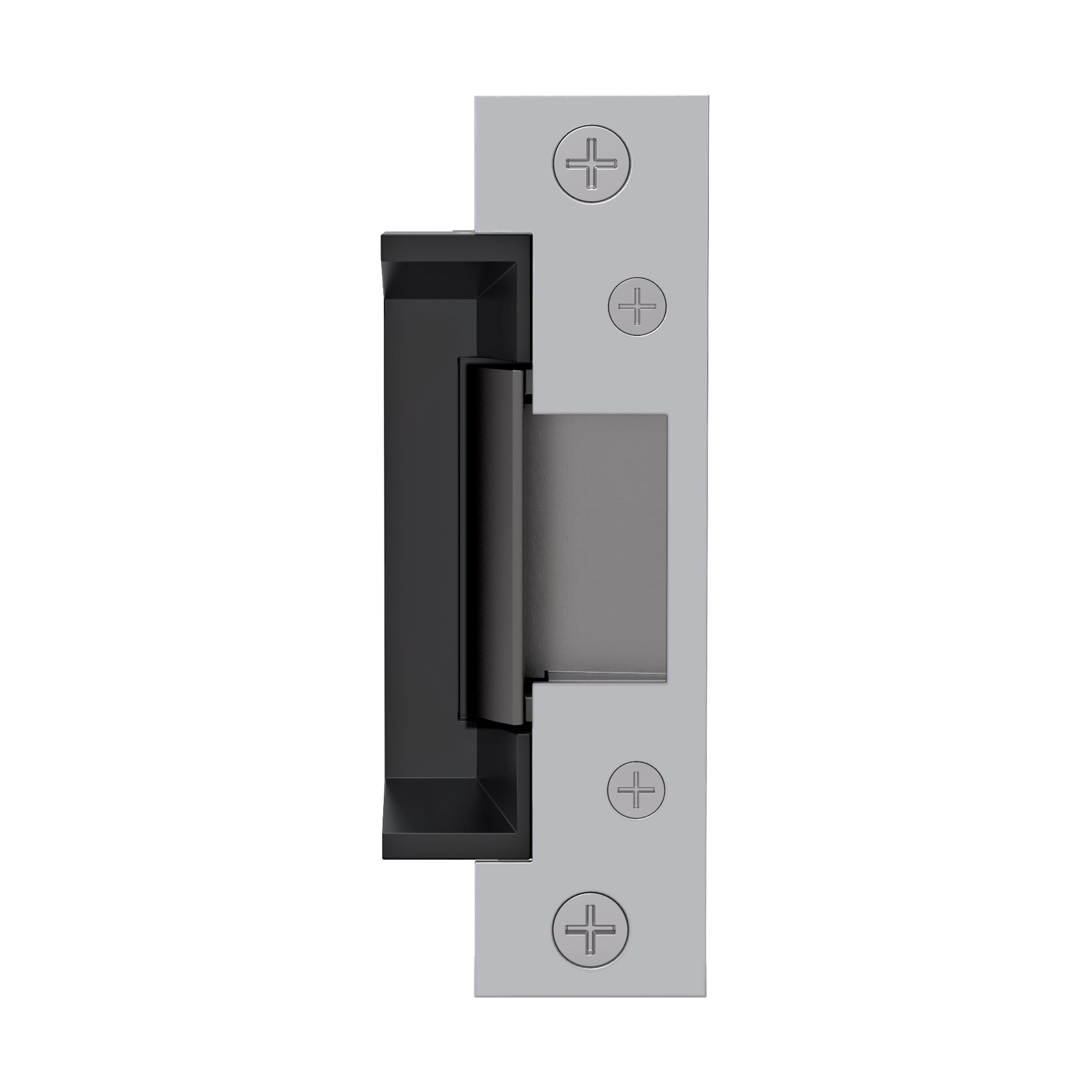

HES 5000 Series

$50.00

The Grade 1, low profile solution for cylindrical locksets.

SKU: HES-5000-SERIES
Category:
Brands:

Description

The Grade 1, low profile solution for cylindrical locksets.

Brand: HES

Category: Electric Strikes

List Price Range: $205 – $325

Source: HES product page

Additional information

finish

605, 606, 612, 629, 630

Reviews

There are no reviews yet.

Be the first to review “HES 5000 Series”

Your email address will not be published. Required fields are marked *

The HES 5000 Series is a compact, high-performance electric strike designed for low-profile openings where there is limited space behind the jamb.

Product specifications
Voltage 12/24
Static Strength (lbs) 1,500
Dynamic Strength (ft-lbs) 70
Endurance (cycles) 1000000
Fail Safe | Fail Secure Field selectable fail safe/fail secure
Grade Grade 1
Monitoring Installation Factory Configured
Monitoring Options Latchbolt Monitoring
Lock Type Cylindrical Lock
Adjustability None
Frame Material Metal|Wood
Latchbolt Accommodation Up to 5/8" (1/2"-5/8", 5/8" with 1/8" door gap)
Strike Body Depth (in) 1.6875
Strike Body Height (in) 4.875
Included in Box 5000 | 5300 Electric Strike Body, Trim Enhancer & Screws (#4-40 x 1/8"), 12 & 24 Volt Plug In Connectors
Low-voltage wiring Connection count needs review
PreparationThe datasheet documents a strike body depth of 1-1/16" and an application for low-profile openings in metal or wood frames with cylindrical locksets.
ElectricalSolenoid operation is 12 VDC or 24 VDC for continuous duty. AC operation is 12 VAC, 16 VAC or 24 VAC only for intermittent duty, with 10% maximum duty cycle and 2 minutes maximum on-time. Select the voltage-labelled connector for the actual system voltage and verify the input with a multimeter before connection. Optional monitoring contacts are separate from strike power.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsSolenoid power pair, illustrated fail-secure circuit: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Match the strike voltage-labelled connector to the selected 12 or 24 VDC system; use the model-specific manufacturer gauge table. Nonnumeric same-interface installation context (does not broaden the count condition): Use the actual manufacturer voltage and operating-mode configuration. The power connection is separate from optional monitoring. Internal coil links, pigtail lead count and controller contacts do not establish one total field conductor count or cable-run quantity. Use the manufacturer supply/duty specification for the exact model; actual cable length and gauge are installation-specific.; endpoints 5000 strike power connector to External DC power source and control relay NO contact; when Installation configuration is For the 12 or 24 VDC fail-secure connection shown in Diagram 3a: two field conductors terminate at the strike power interface, one positive through the external control relay NO contact and one negative/common return. This excludes internal coil-configuration links, optional monitoring conductors and protective earth. It does not establish cable-run quantities or a universal conductor total for other configurations.
