HES 4500C Series

$50.00

The low-profile, heavy-duty, fire-rated solution.

SKU: HES-4500C-SERIES
Category:
Brands:

Description

The low-profile, heavy-duty, fire-rated solution.

Brand: HES

Category: Electric Strikes

List Price Range: $792 – $1,111

Source: HES product page

Additional information

finish

605, 606, 612, 629, 630

Reviews

There are no reviews yet.

Be the first to review “HES 4500C Series”

Your email address will not be published. Required fields are marked *

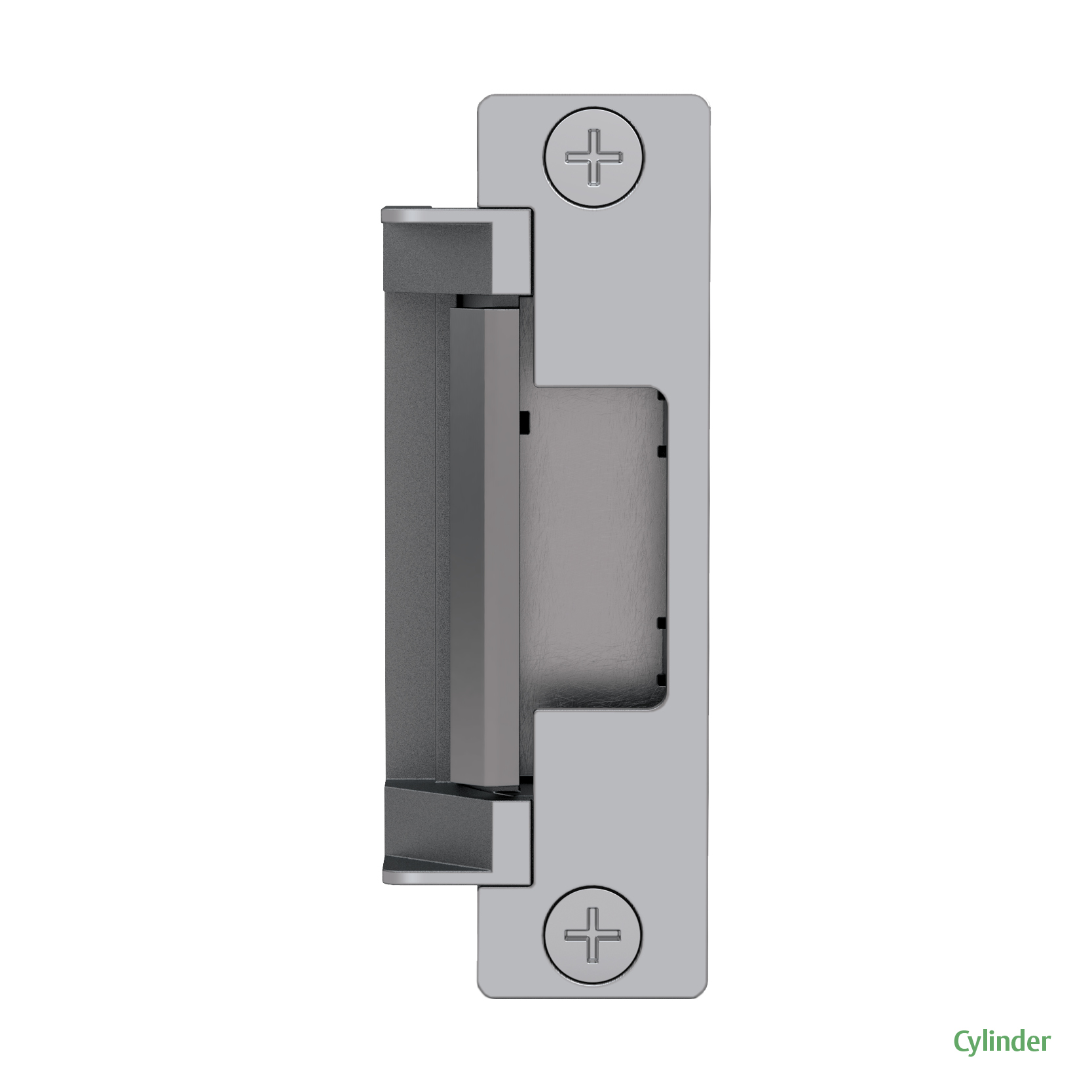

The HES 4500C Series electric strike is designed for installation in 2" UL 10C fire-rated frames with 1/2" drywall penetration. It features a low-profile 1-3/8" depth, heavy-duty stainless steel construction, and a unique keeper-pin locking design intended to exceed the ratings of the frame, door, and locking hardware.

Product specifications
Voltage 12/24
Body Material Stainless steel (per Feature list)
Grade Grade 1
Static Strength (lbs) 1500
Dynamic Strength (ft-lbs) 100
Endurance (cycles) 1,000,000
Fail Safe | Fail Secure Field selectable fail safe/fail secure
Monitoring Installation Factory Configured
Monitoring Options Latchbolt Monitoring|Latchbolt Strike Monitor
Lock Type Cylindrical Lock|Mortise Lock
Handing Non-handed
Adjustability Horizontal
Frame Material Metal|Wood
Latchbolt Accommodation Up to 3/4"
Fire Rating – Single Door 3 Hour (Fail Secure Only)
Included in Box 4500C Series Electric Strike Body, Keeper Shims & Screws (#4-40 x 1/8" and #4-40 x 3/16"), Centerlined and Non-handed Faceplate for Cylindrical Locksets, Offset and Non-handed Faceplate for Mortise Locksets, #12-24 x 1/2" Mounting Screws, 12 & 24 Volt Plug In Connectors, Trim Enhancer & Screws
Low-voltage wiring Connection count needs review
PreparationThe frame must be cut for the strike using the cutout template that matches the lockset type. Schlage L9000 and ASSA ABLOY ACCENTRA 8700 locksets have a separate template. The strike is installed in the jamb cutout with the supplied #12-24 x 1/2" screws. The correct faceplate must be chosen: offset for mortise locksets, center-lined for cylindrical locksets. The 12 VDC or 24 VDC plug-in connector must be selected to match system power. Fail Secure is the shipped mode, and conversion to Fail Safe is optional. Conversion negates the fire rating.
Preparation requiredYes
Conditional connectionsReviewed external strike power interface: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Use the manufacturer voltage/duty specification and installation-specific gauge table.; endpoints External selected DC power supply/control circuit to HES 4500C voltage-matched strike power pigtail; when Installation configuration is The4500C Complete Pac strike power interface only, selected12 or24VDC fail-secureNO example. This is not a statement about extra kit components. Two conductors at this power interface only. Internal coil links, optional monitor circuits, earth and cable-run quantities are excluded.
