hes 1600 series®

HES 1600 Series®

$50.00

Accommodates up to a 1\” deadbolt with enhanced vertical cavity spacing.

SKU: HES-1600-SERIES
Category:
Brands:

Description

Accommodates up to a 1\” deadbolt with enhanced vertical cavity spacing.

Brand: HES

Category: Electric Strikes

List Price Range: $612 – $1,344

Source: HES product page

Additional information

finish

605, 606, 612, 629, 630

Reviews

There are no reviews yet.

Be the first to review “HES 1600 Series®”

Your email address will not be published. Required fields are marked *

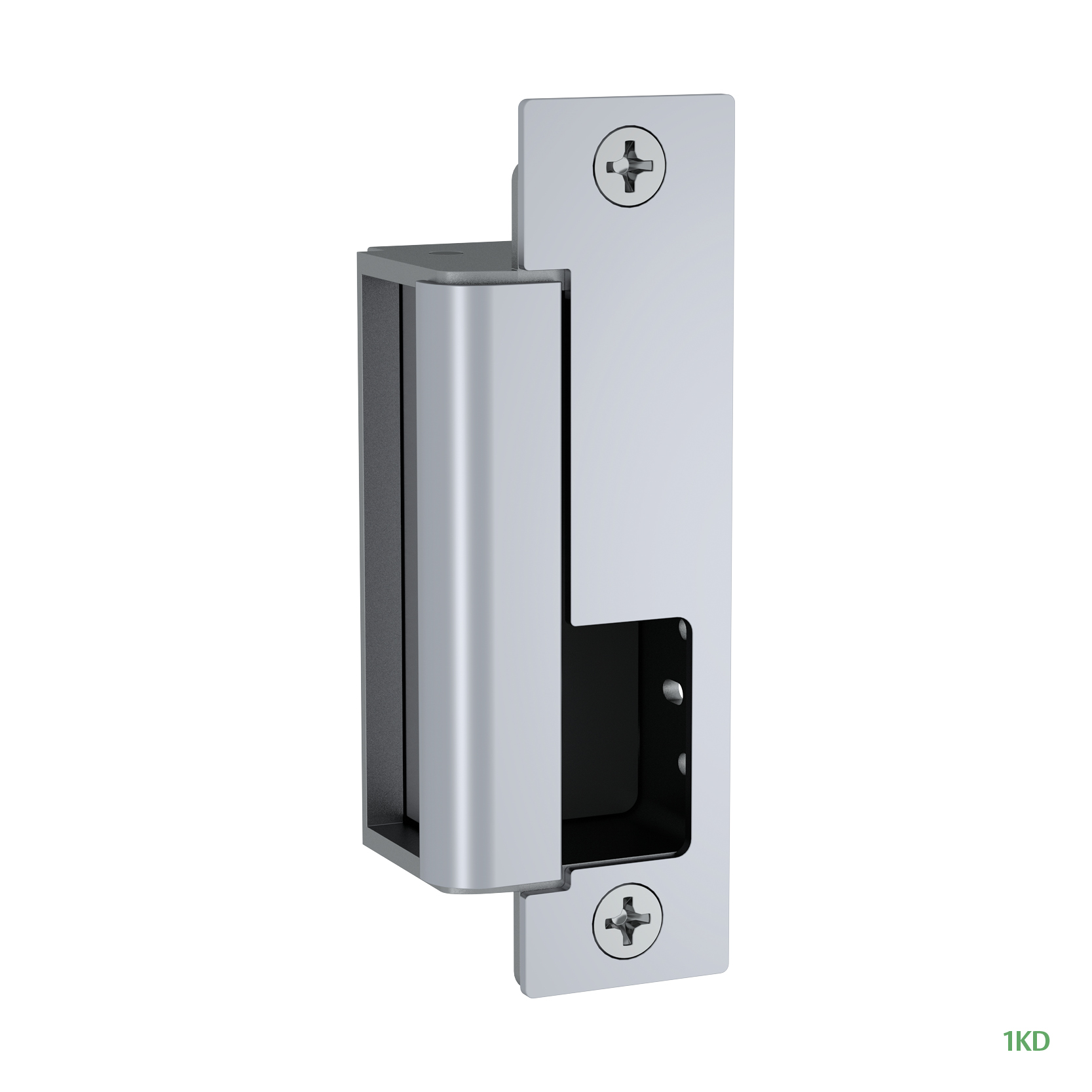

The HES 1600 Series is described as the most advanced heavy-duty electric strike on the market for cylindrical latchbolt and deadbolt locks, accommodating up to a 1" deadbolt with enhanced vertical cavity spacing and every brand of cylindrical or mortise lock designed to work with a 4-7/8" strike plate.

Product specifications
Voltage 12/24
Body Material Stainless steel
Grade Grade 1
Static Strength (lbs) 1500
Dynamic Strength (ft-lbs) 70
Endurance (cycles) 1,000,000
Fail Safe | Fail Secure Field selectable fail safe/fail secure
Monitoring Installation Factory Configured|Field Installable
Monitoring Options Dual Lock Monitors|Lock Monitor
Lock Type Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
Handing Non-handed
Adjustability Horizontal
Frame Material Metal|Wood
Latchbolt Accommodation Up to 1"
Fire Rating – Single Door 3 Hour (Fail Secure Only)
Fire Rating – Double Door 1.5 Hour (Fail Secure Only)
Included in Box 1600 Series Electric Strike Body, Trim Enhancer with #6-32 x 3/16" Screws, 5/64" Hex Wrench, 12 & 24 Volt Plug In Connectors, #12-24 x 1/2" Mounting Screws
Low-voltage wiring Required
BasisStructured, independently qualified product connection evidence
PreparationPrepare the frame using the applicable manufacturer template for the selected faceplate, lockset and frame material. Align the strike horizontal centerline with the mortise or cylindrical lockset as illustrated; the wood- and metal-jamb preparations are different.
ElectricalSolenoid ratings: 12 VDC or 24 VDC for continuous duty; 12-16 VAC or 24 VAC only for intermittent duty, limited to 10% duty cycle and 2 minutes maximum on-time. Use the appropriate voltage-labelled connector and verify input voltage before connecting. Select the actual fail-secure or fail-safe configuration and treat optional monitoring circuits separately.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsOptional Lock Monitor (LM) contact output: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Lock Monitor White lead to Lock Monitor Tan lead to Monitoring device or circuit; when Installation configuration is Optional accessory selected: IF the optional lock monitor is selected or installed. Contact rating is 500 mA at 30 V. The contact is open when the door is open, shown with the strike unpowered. The monitoring circuit endpoint is not documented.; Strike supply connection: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Match the manufacturer voltage and duty specifications; size actual conductors using the installation-specific length/current table. Nonnumeric installation context (does not broaden the selected count): Use the connector for the selected manufacturer supply-voltage and duty configuration. Optional monitor circuits and internal coil-configuration links do not establish the total field cable count.; endpoints External power supply and selected control contact to HES 1600 selected voltage-matched strike power-input connector; when Installation configuration is Selected matching12 or24VDC pigtail at external power interface; operating mode chosen separately. Two conductors terminate at the strike power interface only. Internal coil links, optional monitors, earth and field cable/run/jacket quantities are excluded. This is not a universal total for other configurations.
