camden cx ed1079l – low profile grade 1

Camden CX-ED1079L – Low Profile Grade 1

$50.00

Low Profile Grade 1

SKU: CX-ED1079L
Category:
Brands:

Description

Series: CX-ED1079 Series

Type: 'Universal' Gr. 1 Electric Strikes

Low Profile Grade 1

Brand: Camden

Manufacturer Part Number: CX-ED1079L

Source: Camden Controls product page

Reviews

There are no reviews yet.

Be the first to review “Camden CX-ED1079L – Low Profile Grade 1”

Your email address will not be published. Required fields are marked *

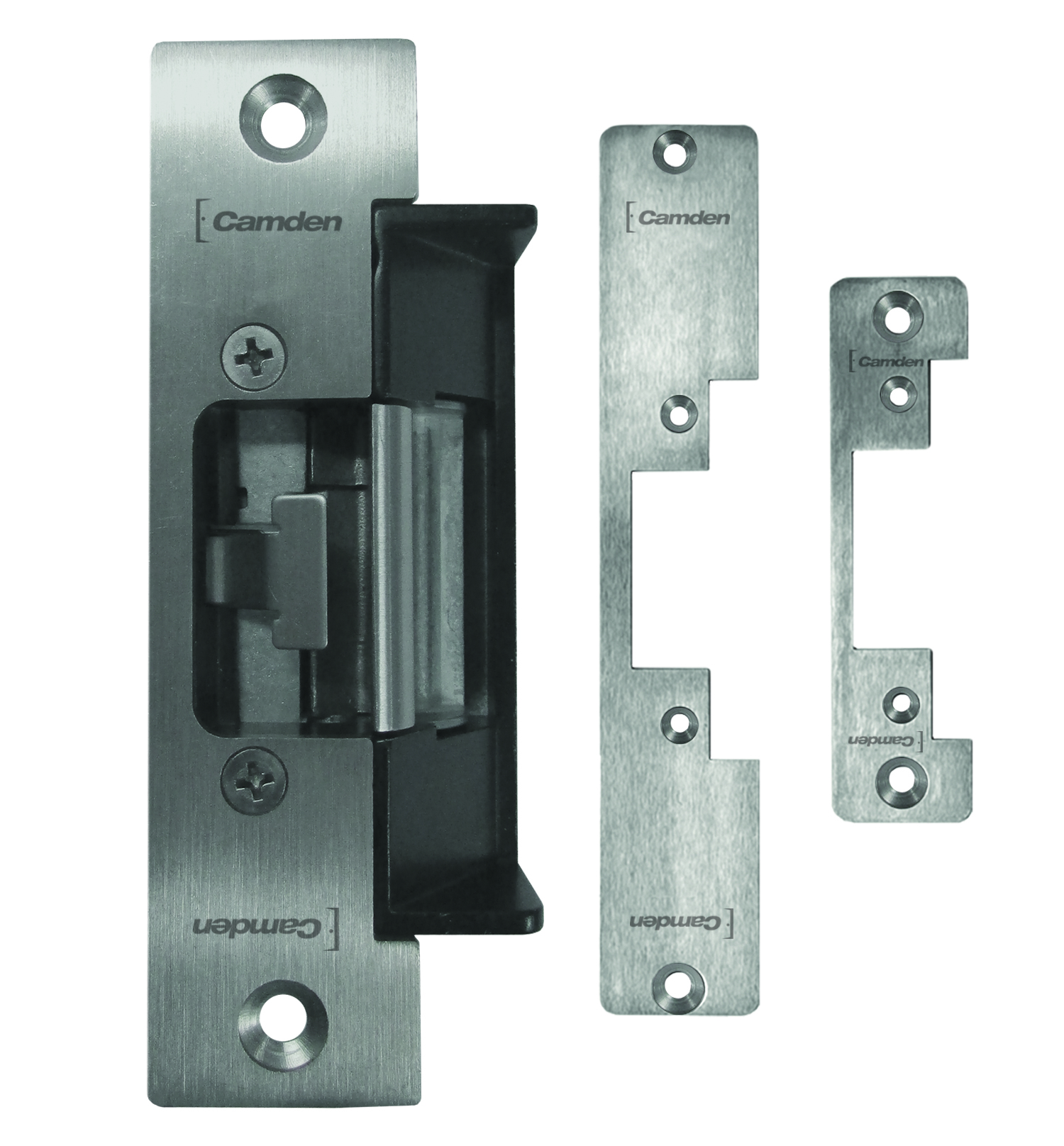

The CX-ED1079 series comprises the CX-ED1079 (low profile, 5/8" latch projection) and CX-ED1079D (standard depth, 3/4" latch projection) UL 1034/UL 294 listed 'Universal' Grade 1 ANSI electric strikes for cylindrical locksets. They offer field-selectable 12/24V AC/DC operation, fail-safe/fail-secure operation, and horizontal faceplate/body adjustment, with optional latch monitoring on both models.

Product specifications
Voltage 12/24V AC/DC selectable
Material (3) stainless steel faceplates included
Certification UL 1034, UL 294
Low-voltage wiring Connection count needs review
PreparationThe strike is a frame-mounted unit for cylindrical locksets. It installs in a door frame (hollow metal, aluminum or wood) and needs a cutout of the documented body size. The faceplate must be matched to the frame type. Mounting-template products (CX-JIG) and lip extensions are listed as optional or support items. The power supply must be set up for 12/24V AC/DC, and fail safe or fail secure mode is selected in the field. Exact cutout dimensions come from the dimension drawings, which were not supplied visually.
ElectricalThe strike is powered at 12/24V AC/DC, with a current draw of 260 mA at 12V and 150 mA at 24V. It has easy-fit connectors for power and monitoring wires. The L model includes a latch monitor with an SPDT, 100mA @ 24V DC contact. Conductor counts, cable runs and wire gauge are not given in the supplied text. The wiring diagram was not supplied visually.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsPower supply to strike (12/24V AC/DC): cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints 12/24V AC/DC power source to strike power connector; when Installation configuration is Base product power connection; terminal and conductor details are not supported by the supplied text.; Latch monitor output (SPDT contact) for the L variant: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints strike monitoring connector to monitoring input of access control or monitoring device; when Installation configuration is Applies to the CX-ED1079L latch monitoring model. It is a signal circuit separate from power, and the choice of whether to wire it is a site decision.; Latch monitor signal output (SPDT, 100mA @ 24V DC) on the latch-monitoring variant: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints CX-ED1079L latch monitor to external monitoring circuit; when Installation configuration is Applies to the CX-ED1079L latch-monitoring variant only. The monitor is described as an optional feature of the strike series, and this variant includes it. The field cable boundary, conductor count and run count are not documented.
