camden cx wec13 – universal emergency call kit with key switch reset

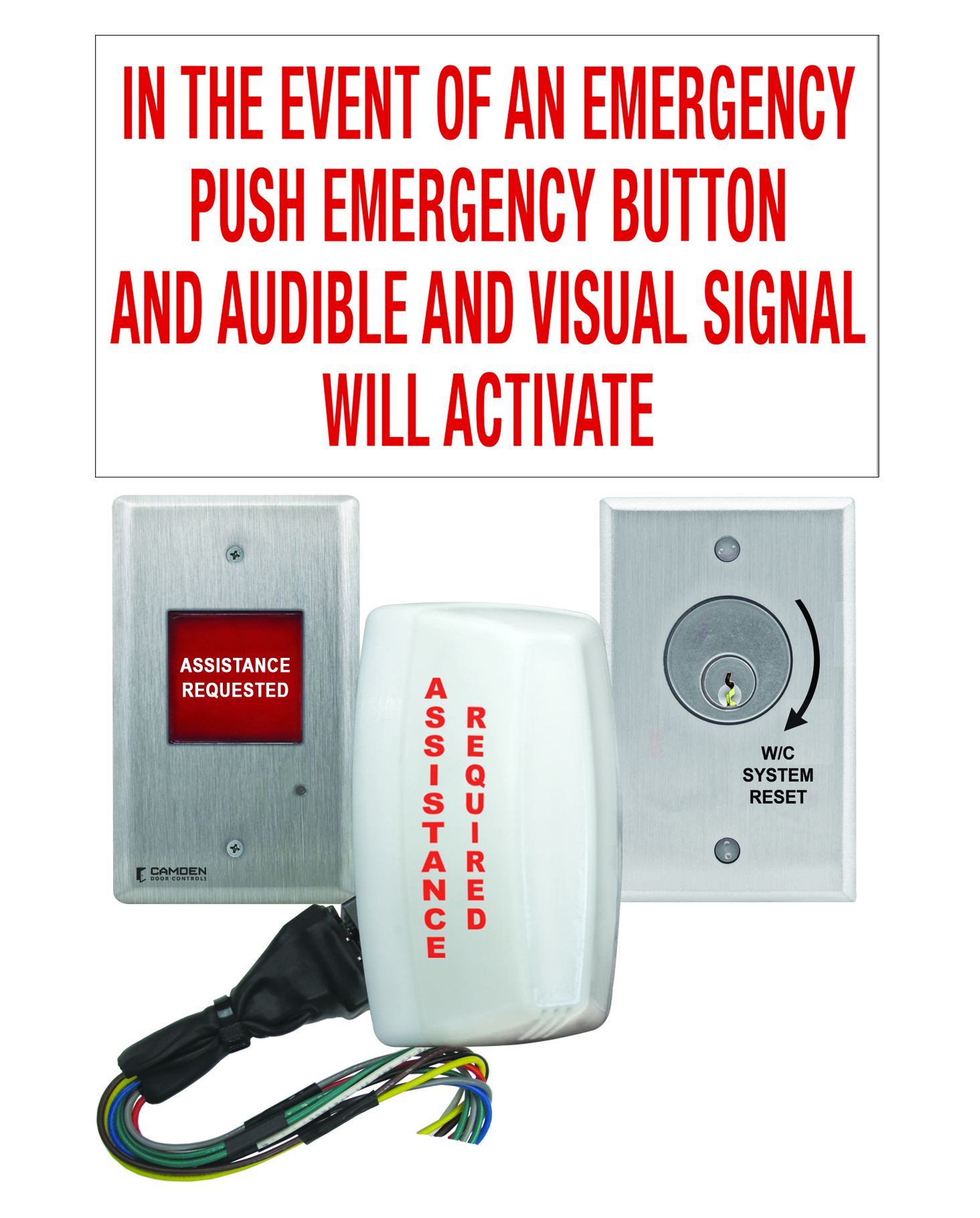

Camden CX-WEC13 – Universal Emergency Call Kit with key switch reset

$110.00

Universal Emergency Call Kit with key switch reset

SKU: CX-WEC13
Category: ,
Brands:

Description

Series: CX-WEC Series

Type: Emergency Call For Universal Restrooms

Universal Emergency Call Kit with key switch reset

Brand: Camden

Manufacturer Part Number: CX-WEC13

Source: Camden Controls product page

Reviews

There are no reviews yet.

Be the first to review “Camden CX-WEC13 – Universal Emergency Call Kit with key switch reset”

Your email address will not be published. Required fields are marked *

Camden CX-WEC Series equipment kits are Emergency Call System packages for universal and barrier-free restrooms, meeting current OBC building code requirements. Kits include a 'PRESS FOR EMERGENCY ASSISTANCE' push button, audible and visual annunciators inside and outside the restroom, and instructional signage, with white-only or multi-color (red/green/blue/white) LED dome lights with adjustable sounder available.

Product specifications
Warranty 3 year warranty
Faceplate single gang stainless steel (CM-450R/12 push button)
Sign CM-SE21 white panel sign, 12.5" x 8.5" (317.5mm x 216mm)
Languages English, French and Bilingual (suffix 'F' for French, 'FE' for French/English, 'SP' for Spanish)
Component power (CM-AF142SO) 12/24 VAC/VDC
Compliance City of Toronto compliant package (CX-WEC12-TS & CX-WEC13-TS) includes 33-1/2" vertical ribbon switch
Low-voltage wiring Connection count needs review
PreparationPlan separate locations for the CM-AF501SO inside annunciator, CM-AF141SO outside dome light, CM-1205/14-60KD momentary NC key reset with keyed-different cylinder, latching relay assembly and instructional sign. Select and obtain the separate momentary emergency-assistance activation switch; this non-TS kit does not list an included ribbon switch. Confirm the delivered component instructions before preparing boxes and fixing locations.
ElectricalThe shared specification lists a 24V latching relay assembly, an inside annunciator and outside dome light, with a momentary assistance input and CM-1205/14-60KD momentary NC key reset with keyed-different cylinder. Keep the activation, reset and annunciation functions distinct. The exact WEC13 drawing shows a 24 VDC source and a separate momentary activation switch not included in the kit. Do not apply the ribbon-switch TS diagram as installation instructions for this non-TS kit. Cable specification, routes and run quantities require the actual installation layout.
