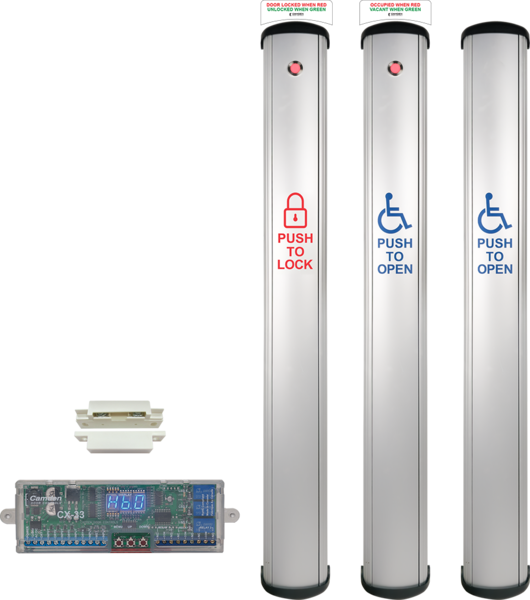

Camden CX-WC18 – 4-1/2″ Wide Column™ Switch with LED Annunciator Restroom System Kit

$389.99

4-1/2\” Wide Column™ Switch with LED Annunciator Restroom System Kit

SKU: CX-WC18

Brands: Camden

Description

Series: CX-WC Series

Type: Barrier Free Restroom Control

4-1/2" Wide Column™ Switch with LED Annunciator Restroom System Kit

Brand: Camden

Manufacturer Part Number: CX-WC18

Source: Camden Controls product page

mount	flush, surface

There are no reviews yet.

Be the first to review “Camden CX-WC18 – 4-1/2″ Wide Column™ Switch with LED Annunciator Restroom System Kit”

Product specifications
Low-voltage wiring	Connection count needs review
Preparation	Confirm the exact CX-WC18 column assemblies and their mounting template before preparing the wall. Plan the outside open, inside open and inside lock locations and the magnetic door contact against the actual door/operator arrangement. Verify which columns carry LED annunciation and match the supplied occupied/locked signs. The kit listing establishes component roles but does not establish an exact cutout, fastening pattern or terminal layout.
Electrical	The kit includes an advanced logic relay, magnetic contact and column activation devices. Column switch contacts and any LED annunciation must be treated as distinct circuits. Obtain the exact CX-WC18 wiring diagram and delivered component part numbers before assigning supply terminals, conductor counts or cable runs. Do not inherit a diagram solely from a similar column width or suffix.
