Camden CX-WC16 – Touchless Switch Restroom System

$275.00

Touchless Switch Restroom System

SKU: CX-WC16

Category: Washroom Kits

Brands: Camden

Description

Series: CX-WC Series

Type: Barrier Free Restroom Control

Touchless Switch Restroom System

Brand: Camden

Manufacturer Part Number: CX-WC16

Source: Camden Controls product page

Additional information

mount	flush, surface

Reviews

There are no reviews yet.

Be the first to review “Camden CX-WC16 – Touchless Switch Restroom System”

Product specifications
Low-voltage wiring	Connection count needs review

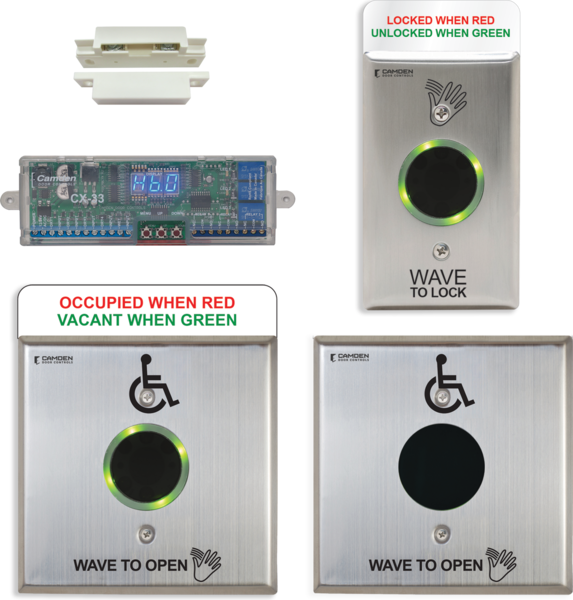

Preparation	Select mounting locations and actual electrical boxes for the outside illuminated Wave-to-Open sensor, inside short-range open sensor and illuminated Wave-to-Lock sensor. Use each sensor mounting manual and confirm the delivered part numbers before wall preparation. Select controller mode, sensor behavior and required detection range, then test inside release, outside privacy lockout, door-contact reset and occupied-ring colour changes. The base kit drawing identifies the operator, strike and power supply as separate required items.
Electrical	The normally-unlocked WC16 drawing shows a CX-33 power input supplied at 12 – 24 V AC/DC. Outside sensor relay contacts feed DRY1, inside open contacts feed DRY2, inside Wave-to-Lock contacts feed DRY3, and the normally-closed door contact feeds DRY4. Relay2 provides the operator activation contact; relay1 switches the separately supplied strike. Each sensor requires its power circuit as well as its contact circuit; the two illuminated sensors also have separate Remote colour-control circuits from relay3. Maintain consistent polarity to their Remote inputs. The normal and secured drawings must be matched to the actual strike fail mode; the secured-page alternative-lock note is ambiguous, so verify the exact relay contact before commissioning.
Conditional connections	CX-WC16 controller supply: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Choose conductor size, physical cable grouping/routes and run quantities for the actual installation.; endpoints Matched external AC/DC supply to CX33 power input; when Installation configuration is Selected normally-unlocked diagram; each sensor/AURA count applies per installed device. Optional devices and different operating modes need matching selected circuit.; CX-WC16 outside open: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Choose conductor size, physical cable grouping/routes and run quantities for the actual installation.; endpoints Outside sensor relay contacts to CX33 DRY1; when Installation configuration is Selected normally-unlocked diagram; each sensor/AURA count applies per installed device. Optional devices and different operating modes need matching selected circuit.; CX-WC16 inside open: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Choose conductor size, physical cable grouping/routes and run quantities for the actual installation.; endpoints Inside short-range sensor contacts to CX33 DRY2; when Installation configuration is Selected normally-unlocked diagram; each sensor/AURA count applies per installed device. Optional devices and different operating modes need matching selected circuit.; CX-WC16 wave to lock: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Choose conductor size, physical cable grouping/routes and run quantities for the actual installation.; endpoints Inside lock sensor contacts to CX33 DRY3; when Installation configuration is Selected normally-unlocked diagram; each sensor/AURA count applies per installed device. Optional devices and different operating modes need matching selected circuit.; CX-WC16 door contact: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Choose conductor size, physical cable grouping/routes and run quantities for the actual installation.; endpoints Normally-closed magnetic contact to CX33 DRY4; when Installation configuration is Selected normally-unlocked diagram; each sensor/AURA count applies per installed device. Optional devices and different operating modes need matching selected circuit.; CX-WC16 operator activation: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Choose conductor size, physical cable grouping/routes and run quantities for the actual installation.; endpoints CX33 relay2 contact pair to Operator activation input; when Installation configuration is Selected normally-unlocked diagram; each sensor/AURA count applies per installed device. Optional devices and different operating modes need matching selected circuit.; CX-WC16 sensor power: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Choose conductor size, physical cable grouping/routes and run quantities for the actual installation.; endpoints Matched external supply to Each installed sensor power pair; when Installation configuration is Selected normally-unlocked diagram; each sensor/AURA count applies per installed device. Optional devices and different operating modes need matching selected circuit.; CX-WC16 illuminated sensor remote: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Choose conductor size, physical cable grouping/routes and run quantities for the actual installation.; endpoints CX33 relay3 contact pair to Each illuminated sensor Remote pair; when Installation configuration is Selected normally-unlocked diagram; each sensor/AURA count applies per installed device. Optional devices and different operating modes need matching selected circuit.
