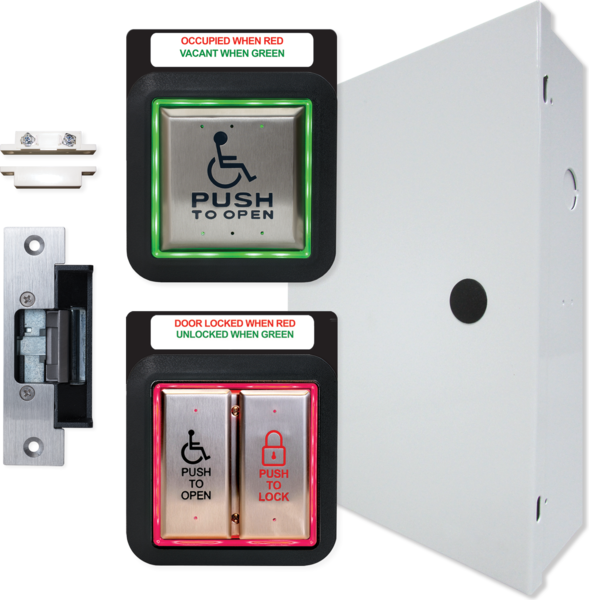

Camden CX-WC13AXFM-PS – Flush Mount Combo Illuminated Push Plate System

$275.00

Flush Mount Combo Illuminated Push Plate System

SKU: CX-WC13AXFM-PS

Category: Washroom Kits

Brands: Camden

Description

Series: CX-WC Series

Type: Barrier Free Restroom Control

Flush Mount Combo Illuminated Push Plate System

Brand: Camden

Manufacturer Part Number: CX-WC13AXFM-PS

Source: Camden Controls product page

Additional information

mount	flush, surface

Reviews

There are no reviews yet.

Be the first to review “Camden CX-WC13AXFM-PS – Flush Mount Combo Illuminated Push Plate System”

Product specifications
Low-voltage wiring	Connection count needs review
Preparation	For the flush AURA stations, prepare the actual unit cutout, fit the drywall bracket, place the black vinyl behind the enclosure and align and fasten the enclosure to the bracket. Install the AURA board and insert with their supplied fasteners. Fit the combo-switch plastic spacer and align its backplate with the AURA insert before securing. Apply the correct occupied/vacant and locked/unlocked labels. Mount the pre-wired cabinet in a clean, dry location protected from the elements; use its attached wiring diagram. Choose normally-unlocked Mode 7 or normally-locked Mode 8 and test inside release, outside lockout, door-contact reset and AURA colour changes. Confirm actual cutout dimensions and cable routes before drilling.
Electrical	The exact powered kit lists cabinet 60-40E033. The cabinet diagram shows separately labelled Outside Push To Open, Inside Push To Open, Push To Lock and DPS NC/COMM input pairs; Door Operator, LED Control and strike outputs; and VDC supply for the AURA boards. Follow the delivered cabinet diagram and keep its transformer primary and internal wiring separate from field circuits. Each selected external low-voltage contact circuit uses two field conductors. Each AURA has separate two-conductor power, Remote colour-control and relay-contact circuits; the local push-button-to-board connection remains within the station. Maintain consistent polarity from the colour-control output to both Remote inputs. These circuit counts do not specify cable jackets or installed run quantities. The reviewed arrangement is the base restroom configuration without emergency-call integration; adding WEC10/K2 changes the door-contact circuit and requires its matching diagram.
Conditional connections	CX-WC13AXFM-PS outside activation: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Specify field cable size, grouping, routes and physical run quantities for the installation.; endpoints Outside AURA relay contacts to Outside input pair; when Installation configuration is Selected base restroom configuration; emergency-call circuit changes require matching diagram. AURA power/remote counts apply per station, not cable jackets. Confirm actual operating mode and strike fail mode.; CX-WC13AXFM-PS inside open: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Specify field cable size, grouping, routes and physical run quantities for the installation.; endpoints Inside open contact to Inside open input pair; when Installation configuration is Selected base restroom configuration; emergency-call circuit changes require matching diagram. AURA power/remote counts apply per station, not cable jackets. Confirm actual operating mode and strike fail mode.; CX-WC13AXFM-PS inside lock: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Specify field cable size, grouping, routes and physical run quantities for the installation.; endpoints Inside AURA relay contacts to Push To Lock input pair; when Installation configuration is Selected base restroom configuration; emergency-call circuit changes require matching diagram. AURA power/remote counts apply per station, not cable jackets. Confirm actual operating mode and strike fail mode.; CX-WC13AXFM-PS door contact: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Specify field cable size, grouping, routes and physical run quantities for the installation.; endpoints Normally-closed door contact to DPS NC/COMM; when Installation configuration is Selected base restroom configuration; emergency-call circuit changes require matching diagram. AURA power/remote counts apply per station, not cable jackets. Confirm actual operating mode and strike fail mode.; CX-WC13AXFM-PS operator loop: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Specify field cable size, grouping, routes and physical run quantities for the installation.; endpoints Door operator activation input to Door Operator output pair; when Installation configuration is Selected base restroom configuration; emergency-call circuit changes require matching diagram. AURA power/remote counts apply per station, not cable jackets. Confirm actual operating mode and strike fail mode.; CX-WC13AXFM-PS strike branch: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Specify field cable size, grouping, routes and physical run quantities for the installation.; endpoints Selected strike to Cabinet strike output and return; when Installation configuration is Selected base restroom configuration; emergency-call circuit changes require matching diagram. AURA power/remote counts apply per station, not cable jackets. Confirm actual operating mode and strike fail mode.; CX-WC13AXFM-PS AURA remote: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Specify field cable size, grouping, routes and physical run quantities for the installation.; endpoints Each AURA Remote pair to Cabinet LED Control; when Installation configuration is Selected base restroom configuration; emergency-call circuit changes require matching diagram. AURA power/remote counts apply per station, not cable jackets. Confirm actual operating mode and strike fail mode.; CX-WC13AXFM-PS AURA power: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Specify field cable size, grouping, routes and physical run quantities for the installation.; endpoints Each AURA power pair to Cabinet VDC pair; when Installation configuration is Selected base restroom configuration; emergency-call circuit changes require matching diagram. AURA power/remote counts apply per station, not cable jackets. Confirm actual operating mode and strike fail mode.
