Description
Transformer, 12VAC, 20VA, standard mount Variant record generated from manufacturer nomenclature (https://www.camdencontrols.com/products/Transformers); price inherited from product #3076 pending owner confirmation.

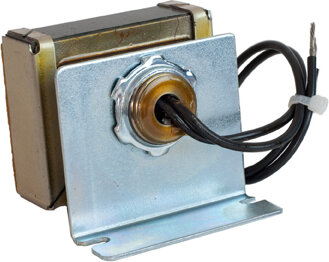

Camden CX-TRX-2012 – Transformer, 12VAC, 20VA, standard mount
$25.00
Transformer, 12VAC, 20VA, standard mount Variant record generated from manufacturer nomenclature (https://www.camdencontrols.com/products/Transformers); price inherited from product #3076 pending owner confirmation.
| Low-voltage wiring | Connection count needs review |
|---|---|
| Preparation | Secure the delivered transformer using its actual mounting arrangement and template, away from combustible material. Confirm the mounting style, clearances and dimensions before preparing the enclosure. The table calls this standard mount, while the drawing calls it nipple mount; dimensions also differ between documents. |
| Electrical | The exact model table lists 12VAC, 20VA. The table calls this standard mount, while the drawing calls it nipple mount; dimensions also differ between documents. Connect the secondary to the selected compatible load; complete secondary wiring before energizing the primary. Prevent secondary short circuits. The general specification states120VAC60Hz while the wiring text states115VAC60Hz; confirm the delivered nameplate and manufacturer instructions. Primary protection is required and belongs to the mains design, outside this low-voltage cable schedule. |
| Electrical wiring required | Yes |
