Camden CX-LED2 – Single gang, 2 LEDs, blank, 12/28 VDC

$50.00

Single gang, 2 LEDs, blank, 12/28 VDC

SKU: CX-LED2

Category: Miscellaneous

Brands: Camden

Description
Reviews (0)

Description

Series: CX-LED

Type: Single Gang LED Plates

Single gang, 2 LEDs, blank, 12/28 VDC

Brand: Camden

Manufacturer Part Number: CX-LED2

Source: Camden Controls product page

Reviews

There are no reviews yet.

Be the first to review “Camden CX-LED2 – Single gang, 2 LEDs, blank, 12/28 VDC”

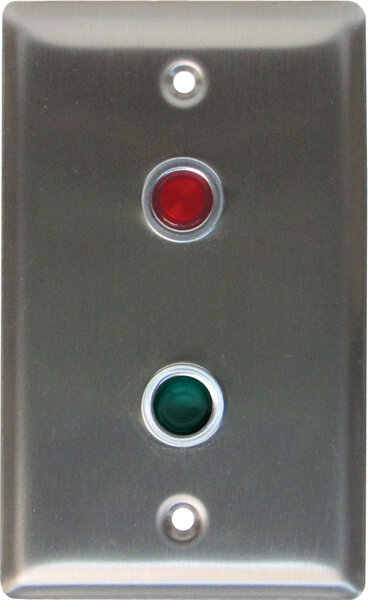

Camden Door Controls CX-LED Series single gang LED annunciators are designed to provide an affordable means of communicating messages to building occupants. When illuminated, the 1/2” super bright LEDs (red or green) are highly visible. A range of graphic texts, laser etched on the faceplate, are permanently marked and will not fade or wear off.

Product specifications
Low-voltage wiring	Connection count needs review
Preparation	Mount this blank single-gang annunciator plate to the electrical box. For outdoor installation, seal the face and use a weatherproof rubber gasket at the box. Secure with the specified security screws. Confirm actual box depth, mounting hardware and selected LED colour configuration before installation.
