Camden CX-LED1 – Single gang, LED, blank, 12/28 VDC

$50.00

Single gang, LED, blank, 12/28 VDC

SKU: CX-LED1

Category: Miscellaneous

Brands: Camden

Description
Reviews (0)

Description

Series: CX-LED

Type: Single Gang LED Plates

Single gang, LED, blank, 12/28 VDC

Brand: Camden

Manufacturer Part Number: CX-LED1

Source: Camden Controls product page

Reviews

There are no reviews yet.

Be the first to review “Camden CX-LED1 – Single gang, LED, blank, 12/28 VDC”

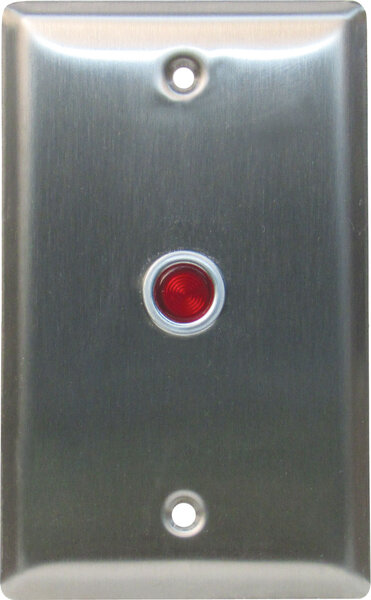

Camden Door Controls CX-LED Series single gang LED annunciators are designed to provide an affordable means of communicating messages to building occupants. When illuminated, the 1/2” super bright LEDs (red or green) are highly visible. A range of graphic texts, laser etched on the faceplate, are permanently marked and will not fade or wear off.

Product specifications
Low-voltage wiring	Connection count needs review
Preparation	Mount this blank single-gang annunciator plate to the electrical box. For outdoor installation, seal the face and use a weatherproof rubber gasket at the box. Secure with the specified security screws. Confirm actual box depth, mounting hardware and selected LED colour configuration before installation.
Electrical	The original LED wiring diagram marks each LED red lead positive and black lead negative. This model has one LED; confirm its selected colour option. Supply-voltage information conflicts between the diagram, specification table and ordering description. Obtain confirmation for the delivered LED assembly before energizing; no universal AC compatibility or upper voltage is inferred. Factory LED leads do not determine field cable gauge or cable jackets. Select cable routing, switching arrangement and run quantities for the installation.
Conditional connections	CX-LED1 selected LED circuit: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field gauge/type, route and physical cable run quantity require installation selection.; endpoints External confirmed low-voltage switched supply/return to LED red positive and black negative; when Installation configuration is Selected single LED after delivered assembly voltage is confirmed.
