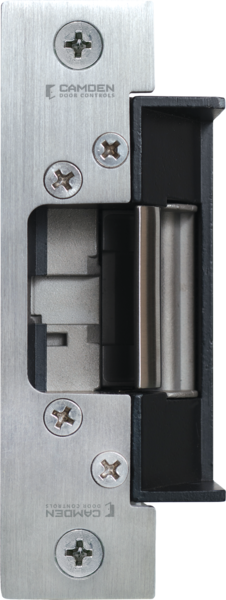

Camden CX-ED1410 – ‘Universal’ Grade 1 ANSI Fire Rated Electric Strike

$50.00

‘Universal\’ Grade 1 ANSI Fire Rated Electric Strike

SKU: CX-ED1410
Category:
Brands:

Description

Series: CX-ED1410 & CX-ED1420 Series

Type: 'Universal' Grade1 ANSI Fire-Rated Electric Strikes

‘Universal' Grade 1 ANSI Fire Rated Electric Strike

Brand: Camden

Manufacturer Part Number: CX-ED1410

Source: Camden Controls product page

Reviews

There are no reviews yet.

Be the first to review “Camden CX-ED1410 – ‘Universal’ Grade 1 ANSI Fire Rated Electric Strike”

Your email address will not be published. Required fields are marked *

The CX-ED1410 (standard depth, 5/8"-3/4" latch projection) and CX-ED1420 (low profile, 1/2"-5/8" latch projection) are UL 1034/UL 294 and UL 90-minute fire rated, ANSI/BHMA A156.31 Grade 1 electric strikes for cylindrical locksets. They offer dual 12/24V AC/DC voltage and field-selectable fail-safe/fail-secure operation, with an ANSI square faceplate and trim plate included.

Product specifications
Voltage 12/24V AC/DC
Current draw 260mA @ 12V AC/DC
Static hold force 1,500 Lbs.
Fire rating 90 Minutes (UL Verified)
Operation Field selectable fail safe / fail secure (Fire rated in fail secure mode only)
Duty Continuous
Latch projection CX-ED1410: 5/8"-3/4" (16mm-19mm); CX-ED1420: 1/2"-5/8" (12mm-16mm)
Dimensions CX-ED1410: 3-3/8" L x 1-7/8" W x 1-3/8" D (86mm x 47mm x 35mm); CX-ED1420: 3-3/8" L x 1-7/8" W x 1-3/16" D (86mm x 47mm x 31mm)
Low-voltage wiring Required
BasisStructured, independently qualified product connection evidence
PreparationThe strike is mounted in a mortise cut in the door jamb. The cutout must accept the strike and its specified depth. Hollow metal frames also need two mounting-bracket holes drilled. ANSI frames use the supplied screws, and the cutout is cut only if the jamb does not match the strike size. Low-voltage power must be available from a transformer or power supply. Fail safe/fail secure operation is set by the mode screw and set plate.
ElectricalThe strike needs low-voltage power: 12/24V AC/DC, with current draw of 260mA at 12V and 150mA at 24V. The supply is connected to the strike's factory wires, and a varistor is connected across the input wires. The 12V and 24V connections differ. For UL 294 / UL 1034 compliance, a Class 2 power-limited supply is required. No separate relay or control cable is documented. The cable gauge and the number of field cable runs are not documented.
Preparation requiredYes
Electrical wiring requiredYes
