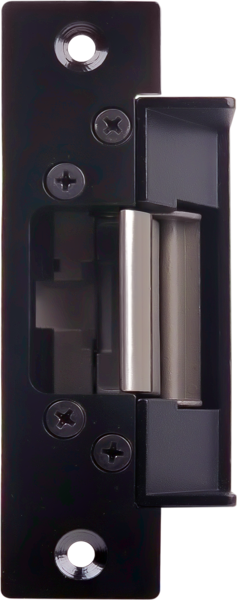

‘Universal\’ Grade 1 ANSI Fire Rated Electric Strike, with an all-black finish faceplate
Series: CX-ED1410 & CX-ED1420 Series
Type: 'Universal' Grade1 ANSI Fire-Rated Electric Strikes
‘Universal' Grade 1 ANSI Fire Rated Electric Strike, with an all-black finish faceplate
Brand: Camden
Manufacturer Part Number: CX-ED1410-BK
Source: Camden Controls product page
The CX-ED1410 (standard depth, 5/8"-3/4" latch projection) and CX-ED1420 (low profile, 1/2"-5/8" latch projection) are UL 1034/UL 294 and UL 90-minute fire rated, ANSI/BHMA A156.31 Grade 1 electric strikes for cylindrical locksets. They offer dual 12/24V AC/DC voltage and field-selectable fail-safe/fail-secure operation, with an ANSI square faceplate and trim plate included.
| Voltage | 12/24V AC/DC |
|---|---|
| Current draw | 260mA @ 12V AC/DC |
| Static hold force | 1,500 Lbs. |
| Fire rating | 90 Minutes (UL Verified) |
| Operation | Field selectable fail safe / fail secure (Fire rated in fail secure mode only) |
| Duty | Continuous |
| Latch projection | CX-ED1410: 5/8"-3/4" (16mm-19mm); CX-ED1420: 1/2"-5/8" (12mm-16mm) |
| Dimensions | CX-ED1410: 3-3/8" L x 1-7/8" W x 1-3/8" D (86mm x 47mm x 35mm); CX-ED1420: 3-3/8" L x 1-7/8" W x 1-3/16" D (86mm x 47mm x 31mm) |
| Low-voltage wiring | Required |
| Cable type | low-voltage control wire (gauge not stated in text) |
| Conductor count | config-dependent (see wiring diagram) |
| Runs per unit | 1 home run per unit to controller (field/design dependent) |
| Basis | VOLTAGE: 12/24V AC/DC |
