Electric Strike with (1) CX-ESF-2 and (1) CX-ESF-2BZ ANSI round face plate
Series: CX-ED1309 & CX-ED1379
Type: 'Universal' Electric Strike for Narrow Stile Aluminum Door Frames
Configuration: Electric Strike with Face Plate
Electric Strike with (1) CX-ESF-2 and (1) CX-ESF-2BZ ANSI round face plate
Brand: Camden
Manufacturer Part Number: CX-ED1379
Source: Camden Controls product page

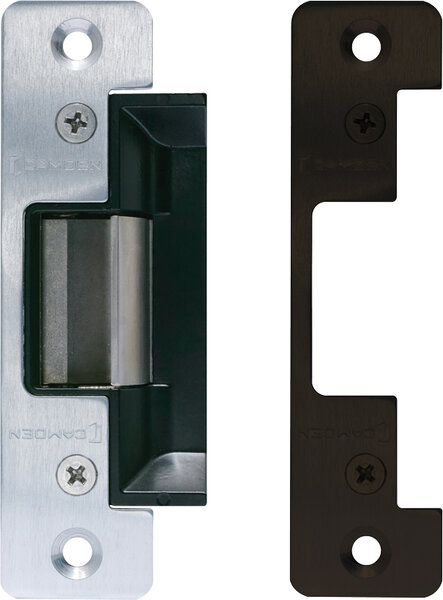

Camden CX-ED1309 Series Grade 1 ANSI electric strikes are designed for narrow stile aluminum door frames, featuring 'Universal' field selection of 12/24V AC or DC and fail safe or fail secure operation. CX-ED1309 electric strike body may be purchased with a separate ANSI square, ANSI round, hollow metal, or wood door faceplate; CX-ED1379 packages the strike body with two ANSI round faceplates (brushed aluminum and dark bronze finishes).
| Voltage | 12/24V AC/DC |
|---|---|
| Current draw | 260mA @ 12V DC | 150mA @ 24V DC |
| Static strength | 1,500 lbs |
| Dynamic strength | 70 ft-lbs |
| Endurance | 1,000,000 cycles (factory tested), 500,000 cycles (UL verified) |
| Mode | field selectable fail safe/fail secure |
| Latch projection | 1/2" to 5/8" |
| Certification | ANSI/BHMA A156.31, Grade 1 certified (CX-ED1379) |
| Warranty | 5 year warranty |
| Low-voltage wiring | Required |
| Basis | Structured, independently qualified product connection evidence |
| Preparation | The CX-ED1379 package includes ANSI-round faceplates in brushed aluminum and dark bronze finishes. Select the actual faceplate for installation. Match the jamb preparation to the selected faceplate/template and actual latch projection. Install the mounting brackets loosely with the specified screws and pressed metal nuts, connect the low-voltage supply, fasten the strike and tighten the brackets. Verify alignment and preserve exit/panic hardware operation. Change fail-safe/fail-secure operation using the actual manual mechanism adjustment and test the completed assembly. The manual package illustration does not establish which faceplate is included in the body-only purchase. |
| Electrical | Select the actual12/24V AC/DC supply and matching supplied voltage harness. The two external power connections are distinct from the four factory coil tails. For the documented cut-wire DC option,12V joins red/black to positive and blue/green to negative;24V uses red positive and green negative with black/blue joined locally. The black/blue dash in the table is not a negative terminal designation. Fit the varistor across the supply pair. The manual gives260mA at12V DC and150mA at24V DC; AC operation buzzes and DC is silent. Follow the manufacturer requirement for a Class2 power-limited supply in its listed application. Select voltage, fail mode and actual connected equipment before specifying cable type, gauge, shielding and physical routes; terminal and factory-tail counts do not establish cable-run quantities. |
| Electrical wiring required | Yes |
| Conditional connections | CX-ED1379 selected voltage-harness supply: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical cable-run quantities unspecified; factory tails and local joins separate.; endpoints Compatible selected12/24VAC/DC external supply to Matching supplied12V or24V strike harness; when Installation configuration is Select the supplied harness matching actual voltage; its two field connections are distinct from four internal coil tails. AC/DC choice follows supplied product rating.; CX-ED1379 12VDC cut-wire power alternative: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical cable-run quantities unspecified; factory tails and local joins separate.; endpoints Compatible external 12VDC supply to Red/black positive and blue/green negative; when Installation configuration is Only when the documented cut-wire 12VDC configuration is used instead of the voltage harness; varistor across supply, local coil joins separate. Alternatives are not additive.; CX-ED1379 24VDC cut-wire power alternative: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical cable-run quantities unspecified; factory tails and local joins separate.; endpoints Compatible external 24VDC supply to Red positive and green negative; black/blue local join; when Installation configuration is Only when the documented cut-wire 24VDC configuration is used instead of the voltage harness; varistor across supply, local coil joins separate. Alternatives are not additive. |
