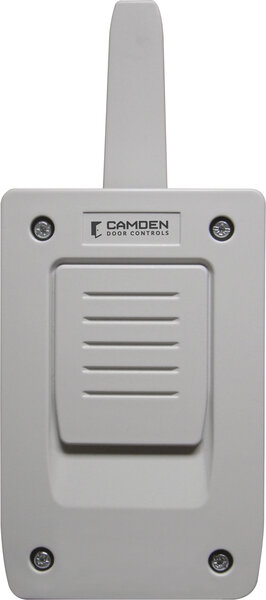

Camden CV-WRX4 – Four channel Wiegand receiver

Four channel Wiegand receiver Variant record generated from manufacturer nomenclature (https://www.camdencontrols.com/products/CV_WR); price inherited from product #3640 pending owner confirmation.

SKU: CV-WRX4
Category: ,
Brands:

Description

Four channel Wiegand receiver Variant record generated from manufacturer nomenclature (https://www.camdencontrols.com/products/CV_WR); price inherited from product #3640 pending owner confirmation.

Reviews

There are no reviews yet.

Be the first to review “Camden CV-WRX4 – Four channel Wiegand receiver”

Your email address will not be published. Required fields are marked *

Product specifications
Low-voltage wiring Required
BasisStructured, independently qualified product connection evidence
PreparationAttach the rear receiver enclosure to a suitable wall using the supplied plugs and screws. Pass cables through the enclosure grommet, make the specified terminal connections, and refit the cover with cables and antenna positioned as instructed. Fit the cable plug for the documented higher enclosure rating. Confirm a clear radio path, receiver protocol and selected output channels; mounting dimensions and channel count do not determine physical cable-run quantities.
ElectricalCV-WRX4 nominal operating voltage is12 VDC, with the manual listing a9-21 VDC range and14 mA standby/36 mA operating consumption. Connect the DC positive/negative input separately from the decoded Wiegand D0/D1 output pairs for selected channels. Select Wiegand26 or37 and the correct facility-code settings for the compatible access controller. The handheld transmitter radio path is separate from these physical receiver circuits. Four available channels do not require four cable runs, and selected output terminations/cable gauge must follow the actual controller installation.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsDecoded Wiegand D0/D1 signal output per channel (CH1 to CH4): cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints CV-WRX4 CH1-CH4 D0/D1 terminals to Wiegand input of external controller; when Installation configuration is Base product. Applies for each channel that is used. The external controller endpoint is inferred from the Wiegand output description rather than named in the manual. Run count and conductors are not documented. Selected protocol is Wiegand 26 (SW1 Off) or Wiegand 37 (SW1 ON).; CV-WRX4 external DC power-input pair: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Select conductor type/gauge from load, distance and exact installation; cable jacket/run quantities unspecified.; endpoints External regulated DC source to Mounted CV-WRX4 DC input; when Installation configuration is Receiver DC power input only, nominal12VDC within documented9-21VDC range. Wiegand data channels, factory/internal connections and upstream wiring are separate.
