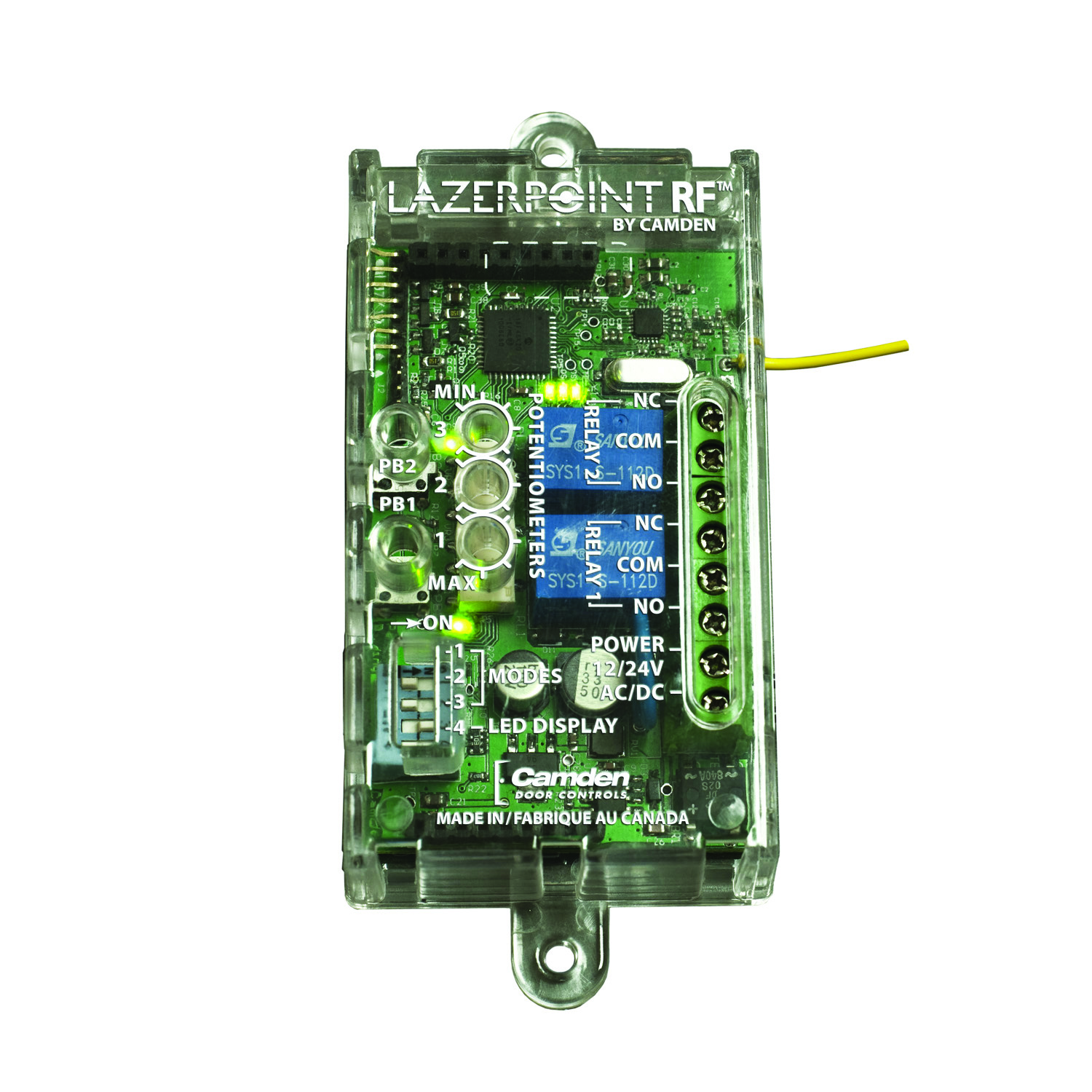

Camden CM-RX-92 – Full Function Dual Relay Receiver

$75.00

Full Function Dual Relay Receiver

SKU: CM-RX-92
Category:
Brands:

Description

Series: Lazerpoint™

Type: 915Mhz. Wireless Door Control System

Configuration: Receivers

Full Function Dual Relay Receiver

Brand: Camden

Manufacturer Part Number: CM-RX-92

Source: Camden Controls product page

Reviews

There are no reviews yet.

Be the first to review “Camden CM-RX-92 – Full Function Dual Relay Receiver”

Your email address will not be published. Required fields are marked *

Lazerpoint RF is a battery-powered 915MHz wireless door control system offering spread-spectrum wireless communication, signal-strength indicators, and 'push and learn' transmitter registration for easy installation. It spans the widest range of transmitters, receivers, activation devices, and switch boxes, including the CM-RX-90 single-relay receiver with 3 operating modes and the RX-92 two-channel receiver with 6 operating modes.

Product specifications
Wireless frequency 915 MHz spread spectrum
Battery multi-year battery life (AAA alkaline or lithium), with low-battery audible alerts, fuel-gauge indicator, and stuck-switch indicator
CM-RX-90 receiver 1 relay, 3 operating modes (delayed, non-delayed, latched)
RX-92 receiver 2 channels, 6 operating modes
Fob options 1, 2, and 4-button ADA-compliant key fobs
Low-voltage wiring Required
BasisStructured, independently qualified product connection evidence
PreparationMount the RX-92 receiver inside the automatic-door header using its end screw holes or supplied Velcro. The receiver specification calls for two #8 screws at 4-inch centers when screw-mounted; check the mechanical drawing and actual clearance. Select the operating mode and its wiring diagram before connecting the controller, learn the selected transmitters and set the relay hold/sequence timing. Test signal strength at the final location and reposition if reception is poor. Optional daughterboards require static precautions. The CM-RFCT cable-tool is temporary for setup visibility and is unplugged after installation.
ElectricalThe receiver requires 12/24VAC/DC operating power at terminals 1 and 2, two circuit conductors. At 24VAC the manual specifies 23mA nominal and 63mA maximum, plus 5mA per fitted RF module. Relay1 is NO3/common4/NC5; relay2 is NO6/common7/NC8. For each used low-voltage relay output, common plus one selected throw uses two conductors; common plus both throws uses three. Select the receiver operating mode and its timing/wiring diagram before assigning controller functions. The manufacturer prohibits using this RF system as a safety device and directs safety devices to be wired directly to the operator control box. Do not use TX-9 transmitter factory leads or the temporary RFCT cable-tool as the receiver field cable specification. Field cable type, gauge, shielding and physical routing remain installation-specific.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsCM-RFCT cable tool for remote LED viewing: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints RX-92 side opening to CM-RFCT cable tool; when Installation configuration is Optional accessory selected: IF the CM-RFCT accessory is selected; it is a plug-in tool, not part of the base wiring.; Plug-in Kinetic wireless daughterboard connection: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints CM-RX-92 receiver to CM-RX-92-DBK1 or CM-RX-92-DBK2 daughterboard; when Installation configuration is Optional accessory selected: IF an optional Kinetic plug-in daughterboard accessory is selected. The sheet lists a slot for 1 or 2 plug-in no-battery wireless daughterboards, but the physical connection details are not documented.; CM-RX-92 operating power terminals1/2: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical routes unspecified; transmitter leads and temporary cable-tool are separate.; endpoints Compatible12/24VAC/DC supply to CM-RX-92 terminals 1 and 2; when Installation configuration is Use the documented operating input; account for fitted RF daughterboard current. Contact ratings are separate from input supply.; Selected CM-RX-92 relay1 common with NO: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical routes unspecified; transmitter leads and temporary cable-tool are separate.; endpoints Selected low-voltage controlled circuit to CM-RX-92 terminals4,3; when Installation configuration is If relay1 is used with NO in the selected receiver mode. Alternatives on the same pole are not additive; do not bridge independent commons.; Selected CM-RX-92 relay1 common with NC: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical routes unspecified; transmitter leads and temporary cable-tool are separate.; endpoints Selected low-voltage controlled circuit to CM-RX-92 terminals4,5; when Installation configuration is If relay1 is used with NC in the selected receiver mode. Alternatives on the same pole are not additive; do not bridge independent commons.; Selected CM-RX-92 relay1 common with NO and NC: cable runs quantity unspecified; 3 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical routes unspecified; transmitter leads and temporary cable-tool are separate.; endpoints Selected low-voltage controlled circuit to CM-RX-92 terminals4,3,5; when Installation configuration is If relay1 is used with NO and NC in the selected receiver mode. Alternatives on the same pole are not additive; do not bridge independent commons.; Selected CM-RX-92 relay2 common with NO: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical routes unspecified; transmitter leads and temporary cable-tool are separate.; endpoints Selected low-voltage controlled circuit to CM-RX-92 terminals7,6; when Installation configuration is If relay2 is used with NO in the selected receiver mode. Alternatives on the same pole are not additive; do not bridge independent commons.; Selected CM-RX-92 relay2 common with NC: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical routes unspecified; transmitter leads and temporary cable-tool are separate.; endpoints Selected low-voltage controlled circuit to CM-RX-92 terminals7,8; when Installation configuration is If relay2 is used with NC in the selected receiver mode. Alternatives on the same pole are not additive; do not bridge independent commons.; Selected CM-RX-92 relay2 common with NO and NC: cable runs quantity unspecified; 3 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical routes unspecified; transmitter leads and temporary cable-tool are separate.; endpoints Selected low-voltage controlled circuit to CM-RX-92 terminals7,6,8; when Installation configuration is If relay2 is used with NO and NC in the selected receiver mode. Alternatives on the same pole are not additive; do not bridge independent commons.
