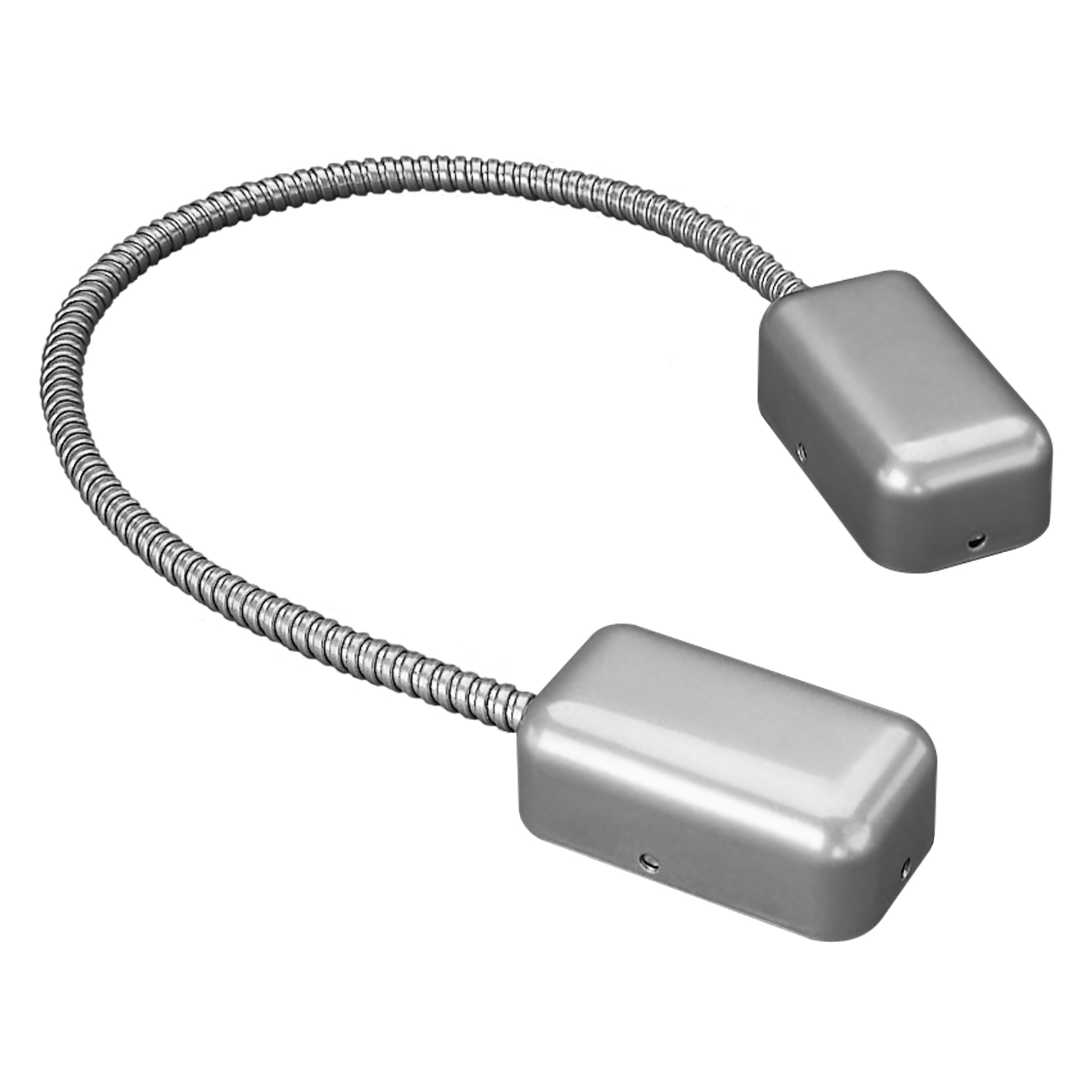

Aluminum endcaps, 18\” length (Formerly CM-PT-38)
Series: CM-PT
Type: Power Transfer Cables (Door Loops)
Configuration: Aluminum Endcaps, 3/8" Inside Diameter
Aluminum endcaps, 18" length (Formerly CM-PT-38)
Brand: Camden
Manufacturer Part Number: CM-PT375AL-18
Source: Camden Controls product page
Camden’s Power Transfer Cables are ideal for connecting power to door accessories like crash bars, electric locks, and other security devices. Their flexible yet durable construction makes them suitable for a wide range of commercial, industrial, and institutional applications where reliable power transmission is critical. Our Power Transfer Cables are crafted with precision engineering, ensuring they exceed industry expectations for performance and durability.
| Low-voltage wiring | Connection count needs review |
|---|---|
| Preparation | Detach the aluminum endcap covers, position the endcaps on the door frame and door along the loop path, and mark cable-passage and mounting holes. Drill the documented 3/8 inch (9.5mm) cable-passage holes through frame and door. Drill 5/32 inch (4mm) mounting pilot holes for the supplied #10 x 7/8 inch screws. Insert the selected cables through the loop, secure the endcaps, tighten the loop-end clamp set screws and avoid sharp bends or cable tension. Reattach the covers with #6 x 1/2 inch Phillips pan-head screws. |
| Electrical | Route the selected door-device cables through the loop. The manual wire-fill chart describes capacity; it does not specify required conductors, physical cable-run quantity or a mandatory field-wire gauge. Select conductor count, cable type, gauge, shielding and routing for the exact connected device and controller circuit. Do not infer a cable-run count from the number of loops. |
| Preparation required | Yes |
