camden cm 9180pte – dpdt momentary,

Camden CM-9180PTE – DPDT MOMENTARY,

$50.00

DPDT MOMENTARY,

SKU: CM-9180PTE
Category:
Brands:

Description

Series: CM-9000/9100

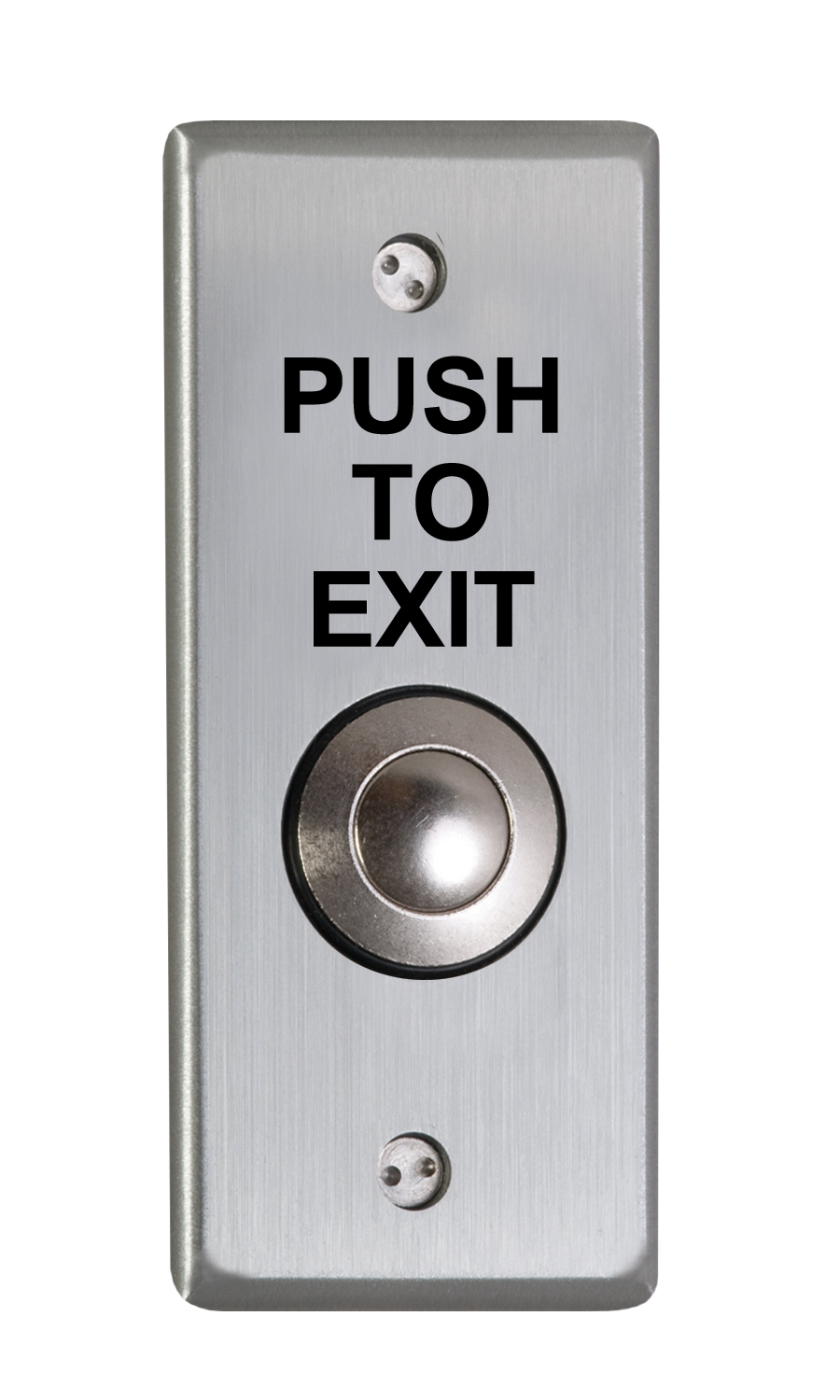

Type: 7/8" Vandal Resistant Push/Exit Switch

Configuration: Narrow Faceplate

DPDT MOMENTARY,

Brand: Camden

Manufacturer Part Number: CM-9180PTE

Source: Camden Controls product page

Reviews

There are no reviews yet.

Be the first to review “Camden CM-9180PTE – DPDT MOMENTARY,”

Your email address will not be published. Required fields are marked *

Camden Door Controls CM-9000 Series exit switches are vandal-resistant pushbuttons designed for high-traffic or vandal-prone applications, with all-metal construction and a steel button countersunk in a heavy-duty 1/4" thick brushed aluminum faceplate. DPDT switches are UL/CSA approved, rated 6 amps @ 30 VDC, in momentary or maintained configurations.

Product specifications
Contact rating 6 amps @ 30V DC
Switch type DPDT (momentary or maintained)
Material all-metal, vandal resistant construction
Finish brushed aluminum
Input voltage 12V or 24V DC
Low-voltage wiring Required
BasisStructured, independently qualified product connection evidence
PreparationProvide the narrow-jamb mounting arrangement for this exact model. The switch is supplied assembled to its faceplate. Complete wiring, then attach it to the selected switch box, wall or receptacle box with the supplied tamperproof or stainless Phillips screws. For outdoor use the manual calls for an extra-cost rubber weatherproofing gasket behind the faceplate; confirm compatibility for the purchased variant and do not assume it is included. Preserve the supplied PUSH TO EXIT graphics; the exact PTE model is listed without button/finish options.
ElectricalThis exact model provides momentary DPDT operation. For each used pole, select common plus NO or common plus NC, two external circuit conductors; using common with both throws uses three. Repeat that selection for the actual used poles, without summing alternative configurations or assuming common connections between poles. The momentary lead table gives common grey or black, NO blue or green and NC orange; verify the delivered lead set and actual pole grouping. Contact ratings describe the controlled circuit, not a separate switch supply. Factory leads do not establish field cable type, gauge, shielding or physical run quantities; obtain these from the connected equipment and site routing.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsSelected CM-9180PTE per-used-pole common and NO: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical run quantities unspecified. Verify actual pole grouping and lead function.; endpoints Selected external low-voltage controlled circuit to CM-9180PTE actual selected pole common and NO; when Installation configuration is For each actual used pole select common and NO. This is an alternative contact configuration, not an aggregate DPDT conductor or cable-run count. Do not bridge independent pole commons by assumption.; Selected CM-9180PTE per-used-pole common and NC: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical run quantities unspecified. Verify actual pole grouping and lead function.; endpoints Selected external low-voltage controlled circuit to CM-9180PTE actual selected pole common and NC; when Installation configuration is For each actual used pole select common and NC. This is an alternative contact configuration, not an aggregate DPDT conductor or cable-run count. Do not bridge independent pole commons by assumption.; Selected CM-9180PTE per-used-pole common, NO and NC: cable runs quantity unspecified; 3 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical run quantities unspecified. Verify actual pole grouping and lead function.; endpoints Selected external low-voltage controlled circuit to CM-9180PTE actual selected pole common, NO and NC; when Installation configuration is For each actual used pole select common, NO and NC. This is an alternative contact configuration, not an aggregate DPDT conductor or cable-run count. Do not bridge independent pole commons by assumption.
