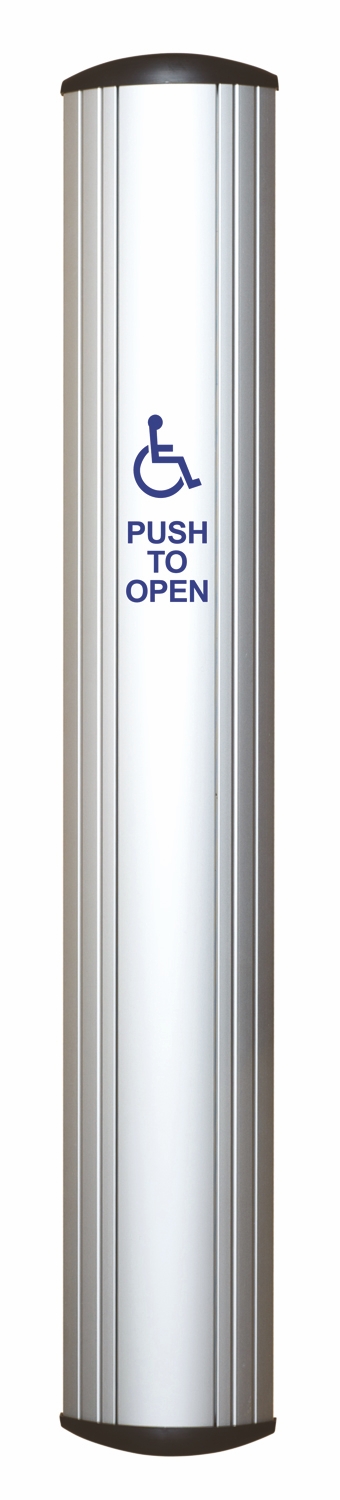

Camden CM-7536/4 – Push Plate Switch

$50.00

Variant record created for schedule matching; price inherited from product #1860 pending owner confirmation.

SKU: CM-7536/4

Category: Actuators

Brands: Camden

Description

Variant record created for schedule matching; price inherited from product #1860 pending owner confirmation.

Additional information

graphic	/1 no graphic, /2 wheelchair, /20 wheelchair+foot icon, /2AL wheelchair+arrow left, /2AR wheelchair+arrow right, /3 push to open, /4 wheelchair+push to open, /40 wheelchair+push to open, /4AL wheelchair+push to open, /4AR wheelchair+push to open, /80 lock (red)+foot icon, /8B lock+push to lock, /8C lock symbol, /A2 active wheelchair, /A20 active wheelchair+foot i, /A4 active wheelchair+push t, /A40 active wheelchair+push t

graphic

/1 no graphic, /2 wheelchair, /20 wheelchair+foot icon, /2AL wheelchair+arrow left, /2AR wheelchair+arrow right, /3 push to open, /4 wheelchair+push to open, /40 wheelchair+push to open, /4AL wheelchair+push to open, /4AR wheelchair+push to open, /80 lock (red)+foot icon, /8B lock+push to lock, /8C lock symbol, /A2 active wheelchair, /A20 active wheelchair+foot i, /A4 active wheelchair+push t, /A40 active wheelchair+push t

Reviews

There are no reviews yet.

Be the first to review “Camden CM-7536/4 – Push Plate Switch”

Product specifications
Low-voltage wiring	Connection count needs review
Preparation	For the delivered CM-7536 assembly, remove the top-cap Phillips screws and cap, then lift out and protect the actuation bar. Mark the actual mounting height and level the base before marking its mounting locations. Use substrate anchors for wall mounting or the specified tapped machine-screw fixing for an aluminum post/frame. Route and splice wiring clear of springs and moving parts, adjust the nylon inset screws for wall irregularities, and tighten the base. Refit the actuation bar without bending the springs or switches, seat it on its hanger, test free operation and reinstall the cap. Use the template matching the delivered generation and finish.
Electrical	The mechanical column uses redundant momentary Form-C contacts wired in parallel in the hardwired configuration. The15A at30VDC value is a contact rating, not a supply requirement. Select the actual contact interface for the controlled device; the number of internal switches is not the number of external cable runs. Optional Lazerpoint transmitter activation leads are local accessory links, and Kinetic is a distinct wireless configuration. Choose field cable type, gauge, shielding, routes and physical run quantities from the installation design.
Preparation required	Yes
