camden cm 60 – 6″ round push plate switch

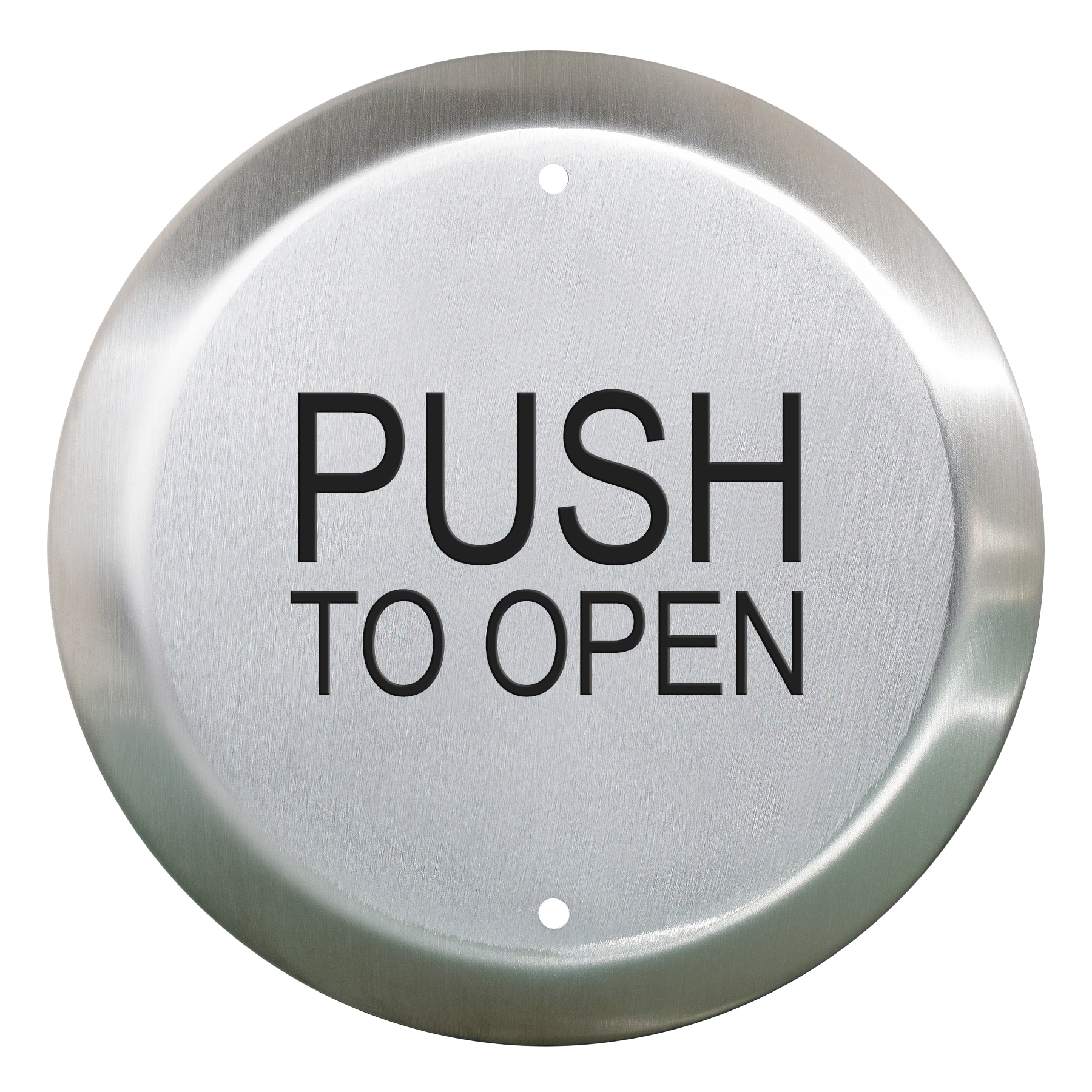

Camden CM-60/3 – 6″ round push plate, push to open graphic

$50.00

6″ round push plate, push to open graphic Variant record generated from manufacturer nomenclature (https://www.camdencontrols.com/products/CM_40_41_60_Series); price inherited from product #3605 pending owner confirmation.

SKU: CM-60/3
Category: ,
Brands:

Description

6″ round push plate, push to open graphic Variant record generated from manufacturer nomenclature (https://www.camdencontrols.com/products/CM_40_41_60_Series); price inherited from product #3605 pending owner confirmation.

Reviews

There are no reviews yet.

Be the first to review “Camden CM-60/3 – 6″ round push plate, push to open graphic”

Your email address will not be published. Required fields are marked *

Product specifications
Low-voltage wiring Required
BasisStructured, independently qualified product connection evidence
PreparationSelect a compatible flush or surface enclosure and use the actual backplate/template before cutting. Partially fit the mounting screws, align the rear slots over their heads, then tighten through the faceplate access holes with the supplied hex key. For flush mounting, secure the supplied adapter plate first using the specified pan-head Phillips screws. Confirm the PUSH TO OPEN graphic and test free plate movement and release.
ElectricalFor the illustrated normally-open activation configuration, connect two external control conductors between a compatible low-voltage controller input and switch COM/NO; leave NC unused. COM connects to NO while pressed and returns on release. The switch is momentary SPDT Form C; 15A at30VDC is its contact rating, not a supply requirement. Select field cable type, gauge, shielding, route and physical run quantities from the installation design. The diagram does not identify lead colors or establish a cable-jacket count.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsCM-60/3 direct low-voltage normally-open controller input: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical run quantity unspecified.; endpoints Selected external low-voltage controller input to Switch COM and NO; when Installation configuration is Illustrated normally-open direct wired configuration; NC unused. Other controller or optional switch configurations require their own design.
