Flush, 4-1/2\” Square, RED/GREEN/BLUE, c/w sounder, mount box
Series: CM-54, CM-55 & CM-57 Series
Type: Illuminated Push Plate Enclosures & Kits
Configuration: AURA™ ILLUMINATED ENCLOSURES
Flush, 4-1/2" Square, RED/GREEN/BLUE, c/w sounder, mount box
Brand: Camden
Manufacturer Part Number: CM-55I
Source: Camden Controls product page
| graphic | /1 blank, /2 wheelchair blue, /2AL wheelchair+arrow left, /2AR wheelchair+arrow right, /3 push to open black, /3F poussez pour ouvrir blac, /4 wheelchair+push to open, /4AL wheelchair+arrow left bl, /4AR wheelchair+arrow right b, /4F wheelchair+french black, /8 push to lock black, /8B lock symbol+push to lock, /8D push to lock door black, /8F poussez pour verrouiller |
|---|

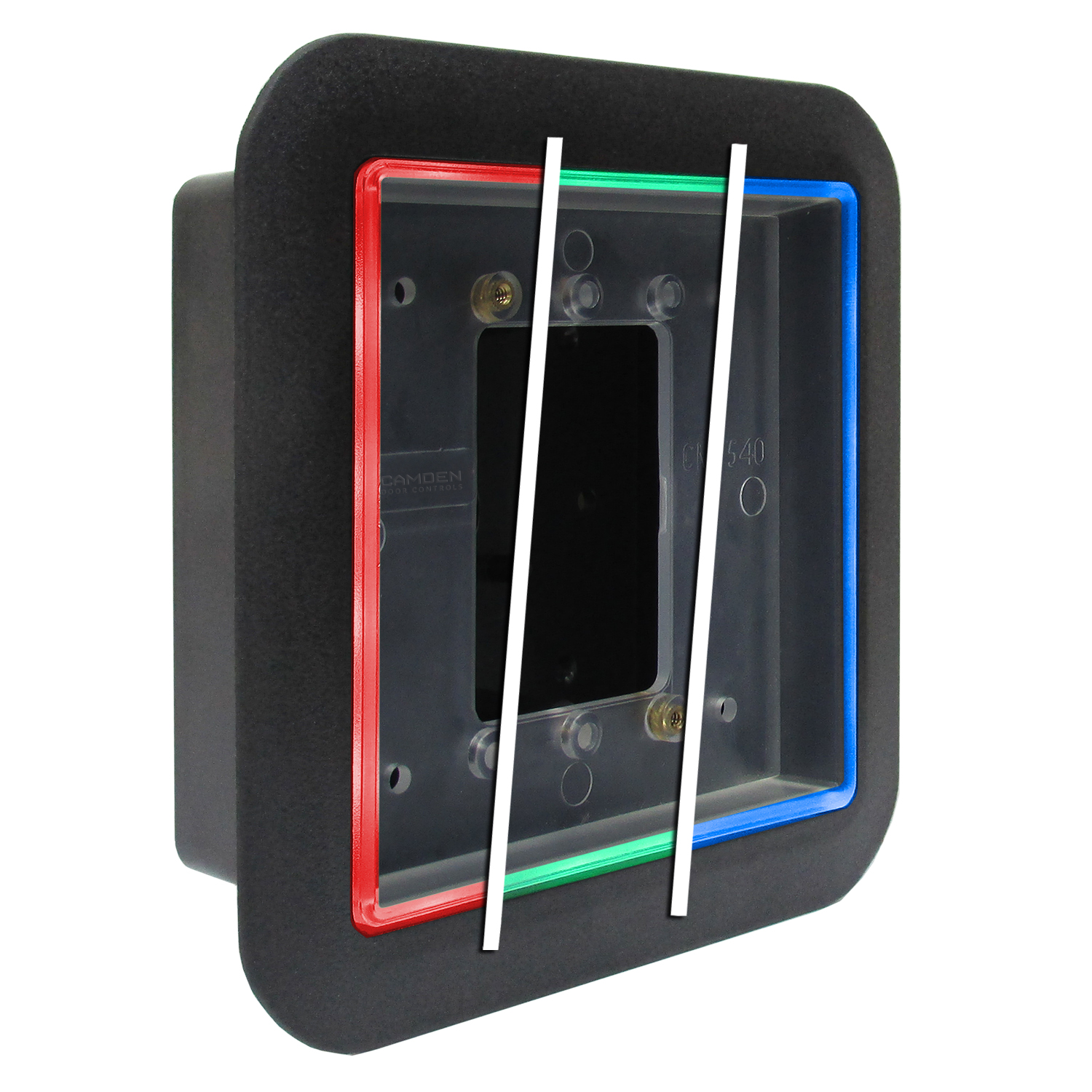

Camden's Aura Illuminated push plate switch series provides high-visibility, ADA-compliant door activation switches available in red, green, or blue illumination, with an audible sounder and Form 'C' contacts. The line is offered in surface-mount square (CM-54i), flush-mount square (CM-55i), and flush-mount round (CM-57GR) configurations.
| Voltage | 12V or 24V AC/DC |
|---|---|
| Current draw | 130mA |
| Contact type | 1 Form 'C' |
| Contact rating | 3 Amps @ 24V AC/DC |
| Dimensions | CM-54i: 5 1/4" W x 5 1/4" H x 2" D (133mm x 133mm x 51mm); CM-55i: 6 1/2" W x 6 1/2" H x 2" D (165mm x 165mm x 51mm); CM-57GRB: 6 5/8" DIA. x 2" D (168mm x 51mm) |
| Low-voltage wiring | Required |
| Basis | Structured, independently qualified product connection evidence |
| Electrical | The base unit takes 12 or 24 V AC/DC input at its power terminals. The installation step says to wire as per the typical diagram. The terminal strip also carries remote and relay terminals, but the text evidence does not establish conductor counts or cable runs. |
| Preparation required | Yes |
| Electrical wiring required | Yes |
| Conditional connections | 12/24 V AC/DC power to the CM-55i circuit board: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints 12/24 V AC/DC power supply to CM-55i PWR terminals; when Installation configuration is Base product. Power terminals are not polarity sensitive.; Remote LED colour change input from a remote device: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints Remote device or relay (e.g. CX-33, EMF-2) to CM-55i REM terminals; when Installation configuration is Optional accessory selected: IF a remote device is used to change the LED colour, with the SW1 REM/LOCAL dipswitch set to remote. Not needed in LOCAL mode.; Push switch connection to the terminal strip: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints All-active push switch (sold separately) to CM-55i terminal strip; when Installation configuration is Optional accessory selected: IF the separately sold all-active push switch is installed. |
