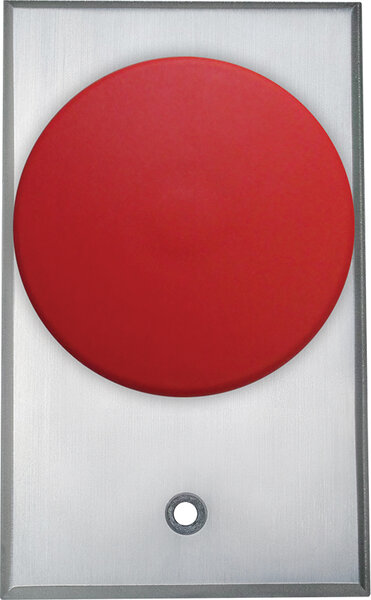

Camden CM-5060 – Push/Turn to Release, N/O, Maintained, Red Only

$50.00

Push/Turn to Release, N/O, Maintained, Red Only

SKU: CM-5060
Category:
Brands:

Description

Series: CM-5000 Series

Type: 2-3/8" Pushbutton, Aluminum Faceplate

Configuration: Single Gang Faceplate

Push/Turn to Release, N/O, Maintained, Red Only

Brand: Camden

Manufacturer Part Number: CM-5060

Source: Camden Controls product page

Reviews

There are no reviews yet.

Be the first to review “Camden CM-5060 – Push/Turn to Release, N/O, Maintained, Red Only”

Your email address will not be published. Required fields are marked *

Camden CM-5000 Series are heavy duty 2-3/8" mushroom push buttons with a vandal- and tamper-resistant 1/4" thick brushed aluminum faceplate and a built-in adjustable 1-60 second pneumatic time delay that requires no power to operate. They are designed to de-energize electric locking devices on egress doors and control electric locks, electro-magnetic locks, electric strikes, and automatic doors in high-traffic areas.

Product specifications
Button size 2-3/8" mushroom button
Faceplate 1/4" thick brushed aluminum, vandal and tamper resistant
Faceplate width narrow (1-3/4") or single gang (2-3/4")
Operating force maximum 8 oz
Time range 1-60 sec +/- 15%
Timer life 1,000,000 operations
Contact type (1) NC, (1) NO
Voltage 12/24 VDC
Contact rating 6A @ 30 VDC
Temperature range -13°F to 158°F (-25°C to 70°C)
Switch type momentary, maintained
Finish brushed aluminum
Dimensions CM-5000: 4-1/2"H x 2-3/4"W x 1-1/2"D (114mm x 70mm x 38mm)
Compliance UL 294
Low-voltage wiring Required
Cable typelow-voltage control wire (gauge not stated in extracted text)
Conductor countconfig-dependent (see wiring diagram)
Runs per unit1 home run per unit to controller (field/design dependent)
Basis1T N.O. 1T N.C. WIRING LAYOUT & COLOR CODING
