camden cm 5040 – push/pull, n/c, maintained, red only

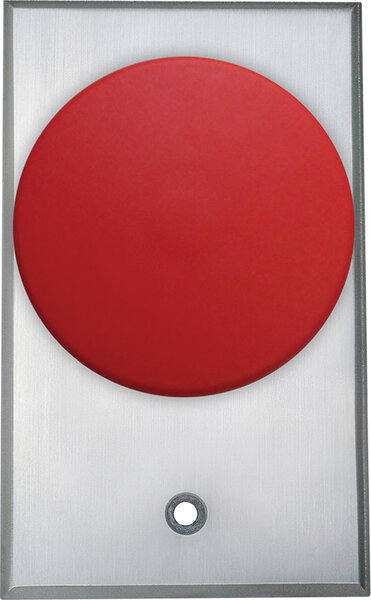

Camden CM-5040 – Push/Pull, N/C, Maintained, Red Only

$50.00

Push/Pull, N/C, Maintained, Red Only

SKU: CM-5040
Category:
Brands:

Description

Series: CM-5000 Series

Type: 2-3/8" Pushbutton, Aluminum Faceplate

Configuration: Single Gang Faceplate

Push/Pull, N/C, Maintained, Red Only

Brand: Camden

Manufacturer Part Number: CM-5040

Source: Camden Controls product page

Reviews

There are no reviews yet.

Be the first to review “Camden CM-5040 – Push/Pull, N/C, Maintained, Red Only”

Your email address will not be published. Required fields are marked *

Camden CM-5000 Series are heavy duty 2-3/8" mushroom push buttons with a vandal- and tamper-resistant 1/4" thick brushed aluminum faceplate and a built-in adjustable 1-60 second pneumatic time delay that requires no power to operate. They are designed to de-energize electric locking devices on egress doors and control electric locks, electro-magnetic locks, electric strikes, and automatic doors in high-traffic areas.

Product specifications
Button size 2-3/8" mushroom button
Faceplate 1/4" thick brushed aluminum, vandal and tamper resistant
Faceplate width narrow (1-3/4") or single gang (2-3/4")
Operating force maximum 8 oz
Time range 1-60 sec +/- 15%
Timer life 1,000,000 operations
Contact type (1) NC, (1) NO
Voltage 12/24 VDC
Contact rating 6A @ 30 VDC
Temperature range -13°F to 158°F (-25°C to 70°C)
Switch type momentary, maintained
Finish brushed aluminum
Dimensions CM-5000: 4-1/2"H x 2-3/4"W x 1-1/2"D (114mm x 70mm x 38mm)
Compliance UL 294
Low-voltage wiring Required
BasisStructured, independently qualified product connection evidence
PreparationProvide the single-gang mounting arrangement for this model and allow clearance behind its faceplate for the contact assembly and wiring. Secure the faceplate with its supplied mounting hardware. Insert wiring into the top and bottom contact-block terminals and tighten the screw terminals. Follow the numbered terminals and verify the installed contact blocks before commissioning; do not identify contact operation from the mushroom button color.
ElectricalFor a selected low-voltage controlled circuit, this maintained push/pull model provides normally closed contact operation. Each used SPST contact connects through two external circuit conductors. Follow the numbered contact-block terminals. The wiring chart and supplied-spade-lead table use different color descriptions, so verify the actual block and lead set. Factory spade leads do not establish field cable-run count. Physical cable-run quantity, field cable type, gauge and shielding require the connected-device instructions and site routing. Contact-load ratings describe the switched circuit, not a separate switch power-supply requirement. The manufacturer manual lists both 10 amps and 6A contact ratings; verify the installed block rating before selecting a load.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsSelected normally closed switch-contact circuit: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical run quantity unspecified; select for controlled device and site.; endpoints Selected low-voltage controlled equipment to CM-5040 normally closed contact terminals; when Installation configuration is Standard CM-5040; use this normally closed contact for the selected controlled function. Two conductors serve this contact; factory spade leads and physical cable-run quantity are separate.
