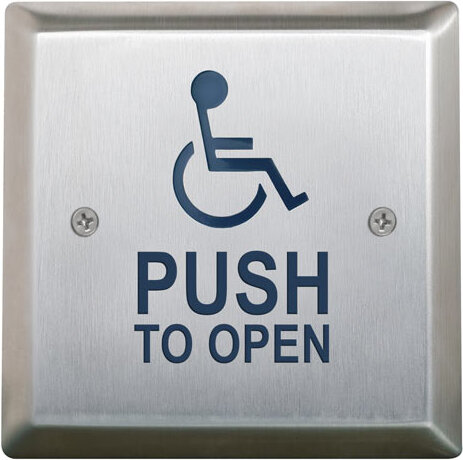

Camden CM-46/4 – Push Plate Switch

$50.00

Variant record created for schedule matching; price inherited from product #1816 pending owner confirmation.

SKU: CM-46/4

Category: Actuators

Brands: Camden

Description

Variant record created for schedule matching; price inherited from product #1816 pending owner confirmation.

Additional information

graphic	/1 blank, /2 wheelchair blue, /2AL wheelchair+arrow left, /2AR wheelchair+arrow right, /3 push to open black, /3F poussez pour ouvrir blac, /4 wheelchair+push to open, /4AL wheelchair+arrow left bl, /4AR wheelchair+push to open, /4F wheelchair+french black, /8 push to lock black, /8B lock symbol+push to lock, /8D push to lock door black, /8F poussez pour verrouiller, /A2 active wheelchair blue, /A4 active wheelchair+push t
finish	605, 606, 609, 613, US10B, US3, US4, US5

graphic

/1 blank, /2 wheelchair blue, /2AL wheelchair+arrow left, /2AR wheelchair+arrow right, /3 push to open black, /3F poussez pour ouvrir blac, /4 wheelchair+push to open, /4AL wheelchair+arrow left bl, /4AR wheelchair+push to open, /4F wheelchair+french black, /8 push to lock black, /8B lock symbol+push to lock, /8D push to lock door black, /8F poussez pour verrouiller, /A2 active wheelchair blue, /A4 active wheelchair+push t

finish

605, 606, 609, 613, US10B, US3, US4, US5

Reviews

There are no reviews yet.

Be the first to review “Camden CM-46/4 – Push Plate Switch”

Product specifications
Low-voltage wiring	Required
Basis	Structured, independently qualified product connection evidence
Preparation	Select a compatible flush or surface enclosure and use the actual backplate/template before cutting. Remove and retain the faceplate screws, fasten the backplate to the enclosure with the specified Phillips screws, then align and reattach the faceplate using the retained screws. Confirm the wheelchair symbol and PUSH TO OPEN graphic and test free plate movement and release.
Electrical	For the illustrated normally-open activation configuration, connect two external control conductors between a compatible low-voltage controller input and switch COM/NO; leave NC unused. COM connects to NO while pressed and returns on release. The switch is momentary SPDT Form C; 15A at30VDC is its contact rating, not a supply requirement. Select field cable type, gauge, shielding, route and physical run quantities from the installation design. The diagram does not identify lead colors or establish a cable-jacket count.
Preparation required	Yes
Electrical wiring required	Yes
Conditional connections	CM-46/4 direct low-voltage normally-open controller input: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field cable type, gauge, shielding and physical run quantity unspecified.; endpoints Selected external low-voltage controller input to Switch COM and NO; when Installation configuration is Illustrated normally-open direct wired configuration; NC unused. Other controller or optional switch configurations require their own design.
