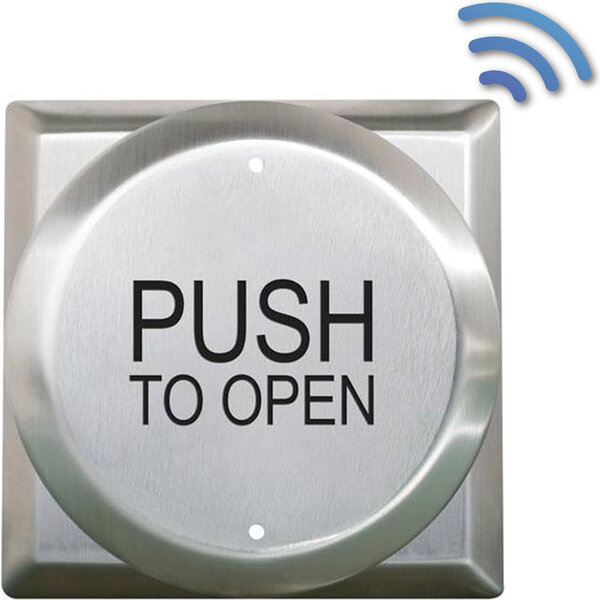

4-1/2\” Stainless Steel Round Push Plate Switch with Square Back Plate
Series: Kinetic by Camden™
Type: 900Mhz. No-Battery Wireless Door Control System
Configuration: Round Push Plate Switches
4-1/2" Stainless Steel Round Push Plate Switch with Square Back Plate
Brand: Camden
Manufacturer Part Number: CM-41K
Source: Camden Controls product page
| graphic | /1 blank, /2 wheelchair blue, /2AL wheelchair+arrow left, /2AR wheelchair+arrow right, /3 push to open black, /3F poussez pour ouvrir blac, /4 wheelchair+push to open, /4AL wheelchair+arrow left bl, /4AR wheelchair+arrow right b, /4F wheelchair+french blue, /8 push to lock black, /8B lock symbol+push to lock, /8D push to lock door black, /8F poussez pour verrouiller, /A2 active wheelchair blue, /A4 active wheelchair+push t |
|---|---|
| finish | 605, 606, 609, 613, US10B, US3, US4, US5 |
Kinetic by Camden is a 900 MHz no-battery wireless door control system that uses the energy generated by pressing the switch to power the wireless transmitter, eliminating batteries and their disposal. It pairs battery-less push plate switches with the compact CM-RX-90 wireless receiver (field-selectable momentary, delayed, or latching relay operation) and is compatible with all brands of automatic door operators for indoor or outdoor use.
| Frequency | 900 MHz Fixed Frequency |
|---|---|
| Range open air | Up to 300 ft |
| Range in operator header | Up to 70 ft |
| Temperature | -40°F to 185°F (-40°C to 85°C) switch; Alkaline receiver battery 32°F to 122°F (0°C to 50°C), Lithium -40°F to 122°F (-40°C to 50°C) |
| Input voltage | 12/24V, AC/DC (CM-RX-90 receiver) |
| Output | CM-RX-90: (1) SPDT relay, 3 modes |
| Current draw | CM-RX-90: 23mA – 43mA |
| Time delay | CM-RX-90: 1-30 seconds |
| Dimensions | CM-RX-90 receiver: 3-1/2"H x 1-1/2"W x 13/16"D (89mm x 38mm x 21mm) |
| Low-voltage wiring | Not required |
| Preparation | The manufacturer page states a required mounting box depth of 1-1/2" (38.1mm) for the switch. The page gives no other mounting details (cutout size, box type or surface requirements). |
| Electrical | The page documents a batteryless wireless transmitter (900MHz) ordered as part of the Camden K-series push plate switches, and lists CM-41K among them. The base switch therefore needs no physical wired connection, provided the 'K' model includes the transmitter. The separately sold CM-RX-90 V2 receiver needs power and relay wiring, but that is a separate product and is not counted against the base switch. |
| Preparation required | Yes |
| Electrical wiring required | No |
| Conditional connections | Power input to optional CM-RX-90v2 receiver, 12/24 V AC/DC, terminals 1 and 2, not polarity sensitive: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints 12/24 V AC/DC supply to CM-RX-90v2 receiver terminals 1 and 2; when Installation configuration is Optional accessory selected: IF the CM-RX-90v2 receiver accessory is selected. This is the receiver's own power connection, not the switch's.; Receiver relay output (terminal 3 normally open, 4 common, 5 normally closed) to the controlled device: cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints CM-RX-90v2 relay terminals 3, 4, 5 to door operator or controlled device; when Installation configuration is Optional accessory selected: IF the CM-RX-90v2 receiver accessory is selected. Which relay terminals are used depends on the controlled device. |
