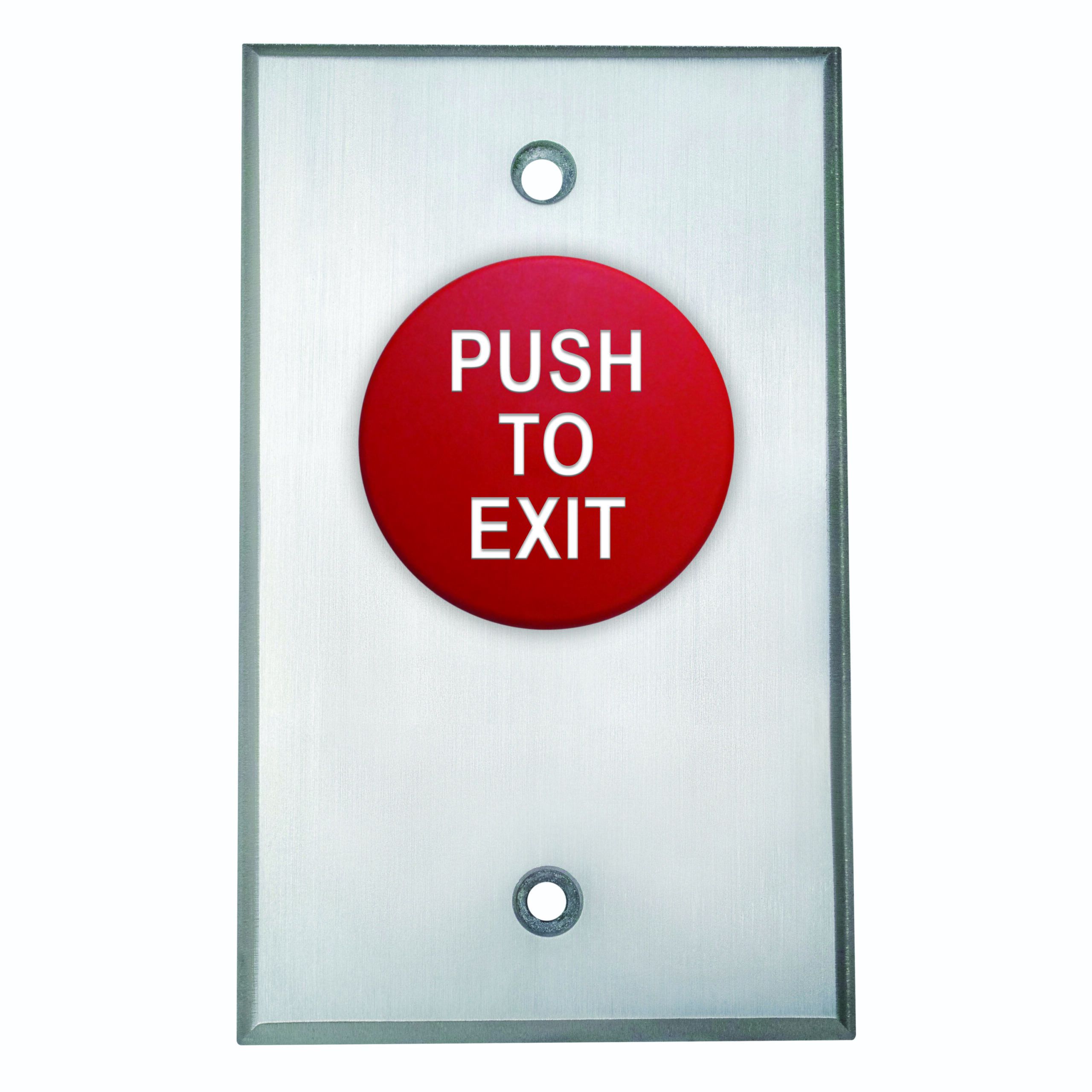

Spring Return, DPST 1-60 sec Pneumatic Timer, Red Button,
Series: CM-4000/4100
Type: 1-5/8" Pushbutton, Aluminum Faceplate
Configuration: Single Gang Faceplate
Spring Return, DPST 1-60 sec Pneumatic Timer, Red Button,
Brand: Camden
Manufacturer Part Number: CM-4085RPTE
Source: Camden Controls product page
Camden Door Controls 4000/4100 Series of push switches are heavy duty pushbuttons, specially designed and manufactured to meet the stringent demands of exit controls. Buttons are available in either green, red, or blue, 1 5/8” diameter. They are supplied with a 1/4” thick brushed aluminum plate in 1 3/4” or 2 3/4” widths.
| Low-voltage wiring | Required |
|---|---|
| AWG | 18 |
| Cable type | multi-conductor low-voltage control wire |
| Conductor count | config-dependent (per switch configuration; see manual wiring table) |
| Runs per unit | 1 home run per unit to controller (field/design dependent) |
| Basis | (44mm) • INDOOR OR OUTDOOR APPLICATIONS • COLOR CODED 18 AWG SPADE |
