camden cm 40 – 4 1/2″ round push plate switch

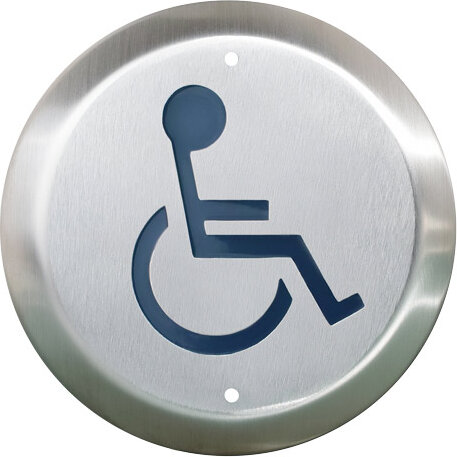

Camden CM-40 – 4-1/2″ Round Push Plate Switch

$50.00

4-1/2\” Round Push Plate Switch

SKU: CM-40
Category:
Brands:

Description

Series: CM-40, CM-41 & CM-60 Series

Type: Round Push Plate Switches

Configuration: Round Push Plates

4-1/2" Round Push Plate Switch

Brand: Camden

Manufacturer Part Number: CM-40

Source: Camden Controls product page

Additional information

graphic

/1 blank, /2 wheelchair blue, /2AL wheelchair+arrow left, /2AR wheelchair+arrow right, /3 push to open black, /3F poussez pour ouvrir blac, /4 wheelchair+push to open, /4AL wheelchair+arrow left bl, /4AR wheelchair+arrow right b, /4F wheelchair+french blue, /8 push to lock black, /8B lock symbol+push to lock, /8D push to lock door black, /8F poussez pour verrouiller, /A2 active wheelchair blue, /A4 active wheelchair+push t
finish

605, 606, 609, 613, US10B, US3, US4, US5

Reviews

There are no reviews yet.

Be the first to review “Camden CM-40 – 4-1/2″ Round Push Plate Switch”

Your email address will not be published. Required fields are marked *

CM-47S SURFACE, ROND, PROFONDEUR STANDARD, POSSIBILITÉ DE CONNEXION SANS FIL. POLYMÈRE NOIR (ABS) RÉSISTANT CM-49 AUX FLAMMES ET AUX RÉSISTANT AUX FLAMMES ET AUX CHOCS, 5” X 1-3/4” D CM-59s Le kit de montage en surface/encastré comprend CM-49A, CM49B, CM-49C et CM-49G. 8-3/4” x 2” POUR LA SÉRIE CM-41 Surface, rond, profondeur standard.

Product specifications
Low-voltage wiring Required
BasisStructured, independently qualified product connection evidence
PreparationSelect flush mounting in a compatible prepared electrical box or a suitable surface enclosure. Start the specified mounting screws without fully tightening them,align the rear slots over the screw heads and secure the switch. Access the mounting screws through the faceplate holes with the supplied hex key for final tightening. Use the mounting hardware and enclosure specified for the actual supplied assembly.
ElectricalThe CM-40 is a passive momentary SPDT Form C dry-contact switch with COM, NO and NC terminals/leads. It switches an external circuit such as a strike, maglock or automatic door operator. The contact rating (15A @ 30VDC) is a contact rating, not a power input requirement. The documents do not give a field cable count or gauge in the supplied text.
Preparation requiredYes
Electrical wiring requiredYes
Conditional connectionsSwitch contact output to the controlled device or circuit (COM with NO, and NC if used): cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints CM-40 switch COM/NO/NC contacts to external controlled device/circuit; when Installation configuration is Base product, SPDT momentary contact; which contacts are used depends on the application (NO closes when pressed, NC is not used in the documented table). The field cable count is not stated.
