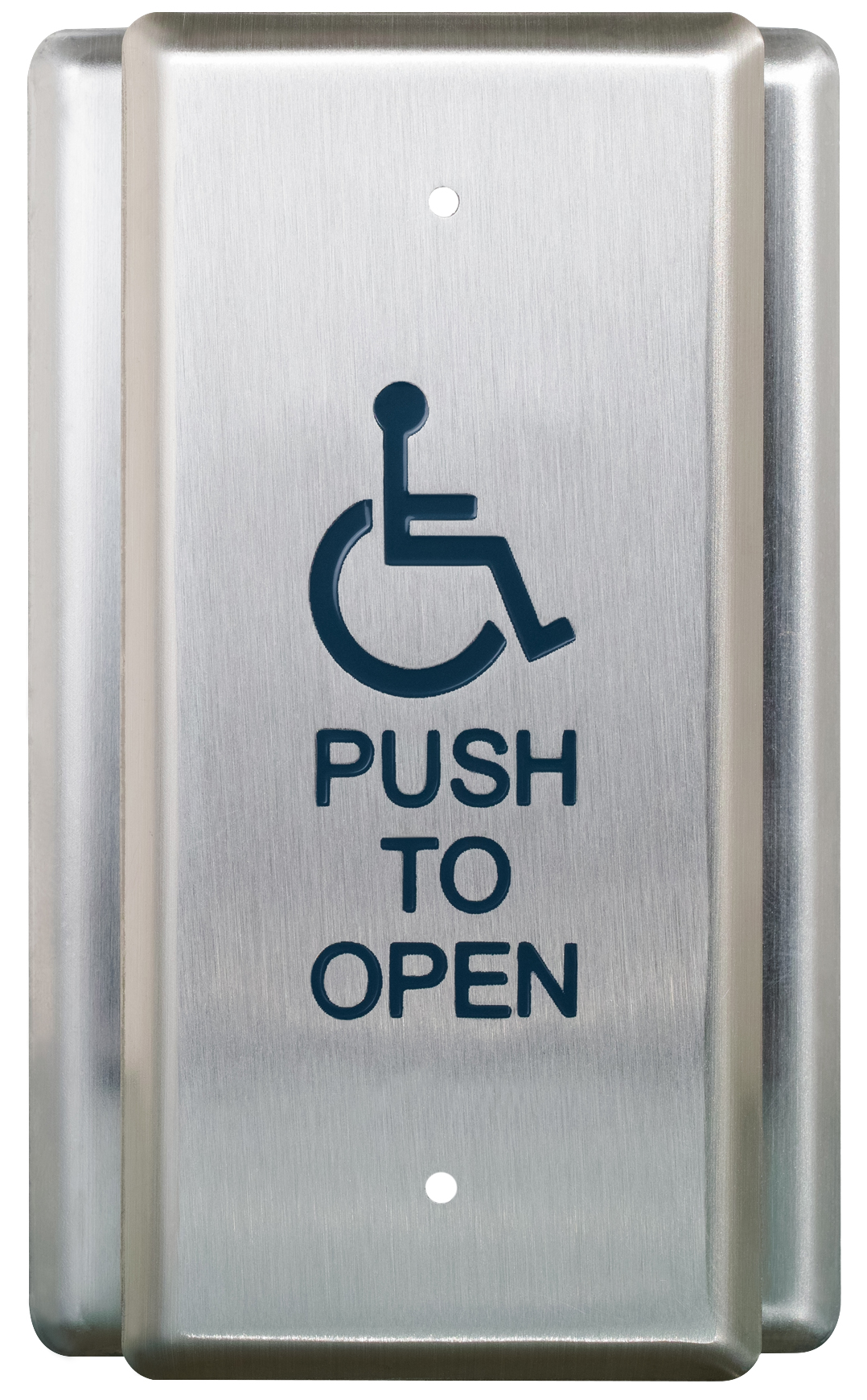

4-1/2\” x 2\” (114mm x 50.8mm) Single gang push plate switch, vertical mounting
Series: CM-25, CM-26CB & CM-35 Series
Type: Narrow Push Plate Switches
Configuration: Narrow, OBC Compliant
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting
Brand: Camden
Manufacturer Part Number: CM-35
Source: Camden Controls product page
| graphic | /1 blank, /2 wheelchair blue, /2AL wheelchair+arrow left, /2AR wheelchair+arrow right, /3 push to open black, /3F poussez pour ouvrir blac, /4 wheelchair+push to open, /4AL wheelchair+arrow left bl, /4AR wheelchair+arrow right b, /4F wheelchair+french text, /8 push to lock black, /8B lock symbol+push to lock, /A2 active wheelchair blue, /A4 active wheelchair+push t |
|---|---|
| finish | 605, 606, 609, 613, US10B, US3, US4, US5 |
Kinetic by Camden is a 900 MHz no-battery wireless door control system that uses the energy generated by pressing the switch to power the wireless transmitter, eliminating the need for batteries or external wiring at the switch. It is compatible with all brands of automatic door operators and is designed for reliable door activation in commercial, industrial, or institutional applications, indoors or outdoors.
| Wireless frequency | 900 MHz fixed frequency |
|---|---|
| Range open air | up to 300 ft |
| Range in operator header | up to 70 ft |
| Switch temp rating | -40°F to 185°F (-40°C to 85°C) |
| Water tight option | yes |
| Box depth required | 1-1/2" (38mm) |
| Activation force | 3.4 lbs maximum |
| Compatible receiver voltage | 12/24V AC/DC |
| Output (CM-RX-90) | (1) SPDT relay, 3 modes |
| Current draw (CM-RX-90) | 23mA – 43mA |
| Temperature rating (CM-RX-90) | alkaline: 32°F to 122°F (0°C to 50°C); lithium: -40°F to 122°F (-40°C to 50°C) |
| Time delay (CM-RX-90) | 1-30 seconds |
| Dimensions (CM-RX-90) | 3-1/2"H x 1-1/2"W x 13/16"D (89mm x 38mm x 21mm) |
| Low-voltage wiring | Connection count needs review |
| Preparation | The CM-35 mounts in a single gang box and can be surface or flush mounted. It is supplied as a complete ready-to-install assembly with stainless steel Allen screws and an Allen wrench. Mounting depth, cutout and drilling dimensions are shown on the spec sheet diagrams; the available text does not reliably assign them to the CM-35 or the CM-35N, so no specific cutout values are stated here. |
| Electrical | The CM-35 is a wired, momentary N/O SPST push plate switch used to control devices such as electric strikes, maglocks and automatic doors. Its contact is passive. The rating of 3 A @ 30 VDC is a contact rating, not a power requirement for the switch. Terminal and conductor details were not supplied in the text evidence. |
| Preparation required | Yes |
| Electrical wiring required | Yes |
| Conditional connections | Switch contact circuit to the controlled device (for example a strike, maglock or door operator): cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints CM-35 N/O SPST contact to Controlled device or control input; when Installation configuration is Base product, standard use as a door activation switch. The number of cable runs and conductors depends on the site's wiring configuration and is not established by the supplied text.; Optional Kinetic no-battery wireless transmitter and CM-RX-90 receiver relay output wiring (receiver power and relay output to the door operator or controlled device): cable runs quantity unspecified; conductor count unspecified; wire type not documented; size unspecified; shielding unspecified; rating unspecified; endpoints CM-RX-90 / CM-RX-90V2 receiver to external controlled device / door operator; when Installation configuration is Optional accessory selected: IF the optional Kinetic no-battery wireless transmitter is selected with the CM-35 (the transmitter may be ordered as part of the CM-35 series), a separate CM-RX-90 receiver is used. The receiver is documented as 12/24V AC/DC with an SPDT relay output. The transmitter-to-receiver link is wireless, so it is not a physical cable. Terminal assignments and cable runs are not documented in the supplied text. |
