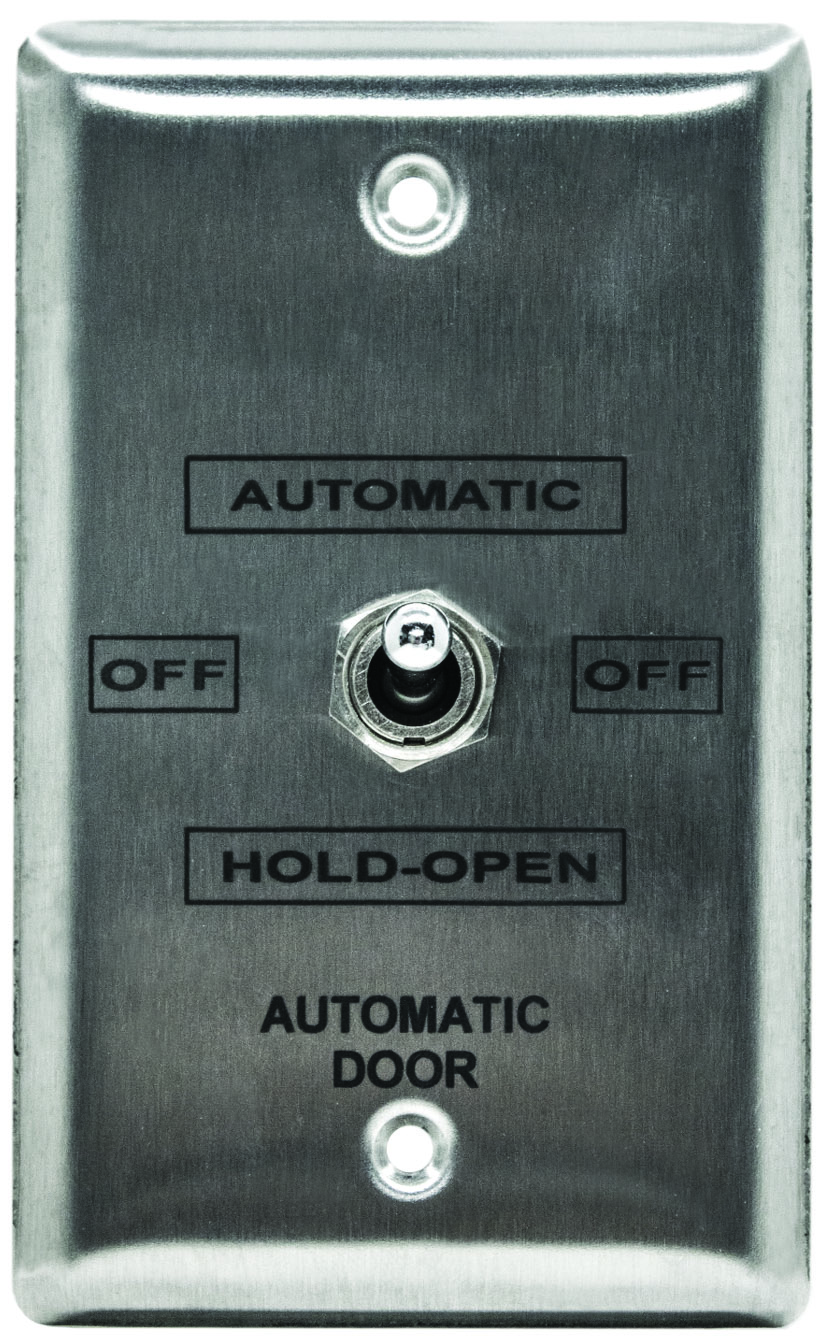

Camden CM-195-31 – Single gang toggle, three position On/Off/Hold Open

$50.00

Single gang toggle, three position On/Off/Hold Open Variant record generated from manufacturer nomenclature (https://www.camdencontrols.com/products/CM_190_195Series); price inherited from product #2696 pending owner confirmation.

SKU: CM-195-31

Category: Camden Door Controls, CM 190 195Series

Brands: Camden

Description
Reviews (0)

Description

Reviews

There are no reviews yet.

Be the first to review “Camden CM-195-31 – Single gang toggle, three position On/Off/Hold Open”

Product specifications
Low-voltage wiring	Required
Basis	Structured, independently qualified product connection evidence
Preparation	Mount the single-gang stainless steel faceplate on the door operator cabinet or wall. Confirm the actual mounting surface, rear clearance and cutout before installation: the specification contains inconsistent imperial/metric dimension conversions and is not a verified cutting template. Preserve the purchased /31 switch action and faceplate graphics.
Electrical	For /31 ON/OFF/HOLD OPEN, connect green to operator Active, red to Common and orange to the activation-device branch as drawn; extending these three connections uses three conductors. These are selected low-voltage control circuits. The diagrams show nominal 12-inch factory leads; these do not establish a field cable schedule. The specification lists input voltage but the diagrams do not identify a separate supply input; do not treat contact ratings as a separate power requirement. Confirm controller compatibility and choose field cable type, gauge, shielding and routes from equipment and site requirements.
Preparation required	Yes
Electrical wiring required	Yes
