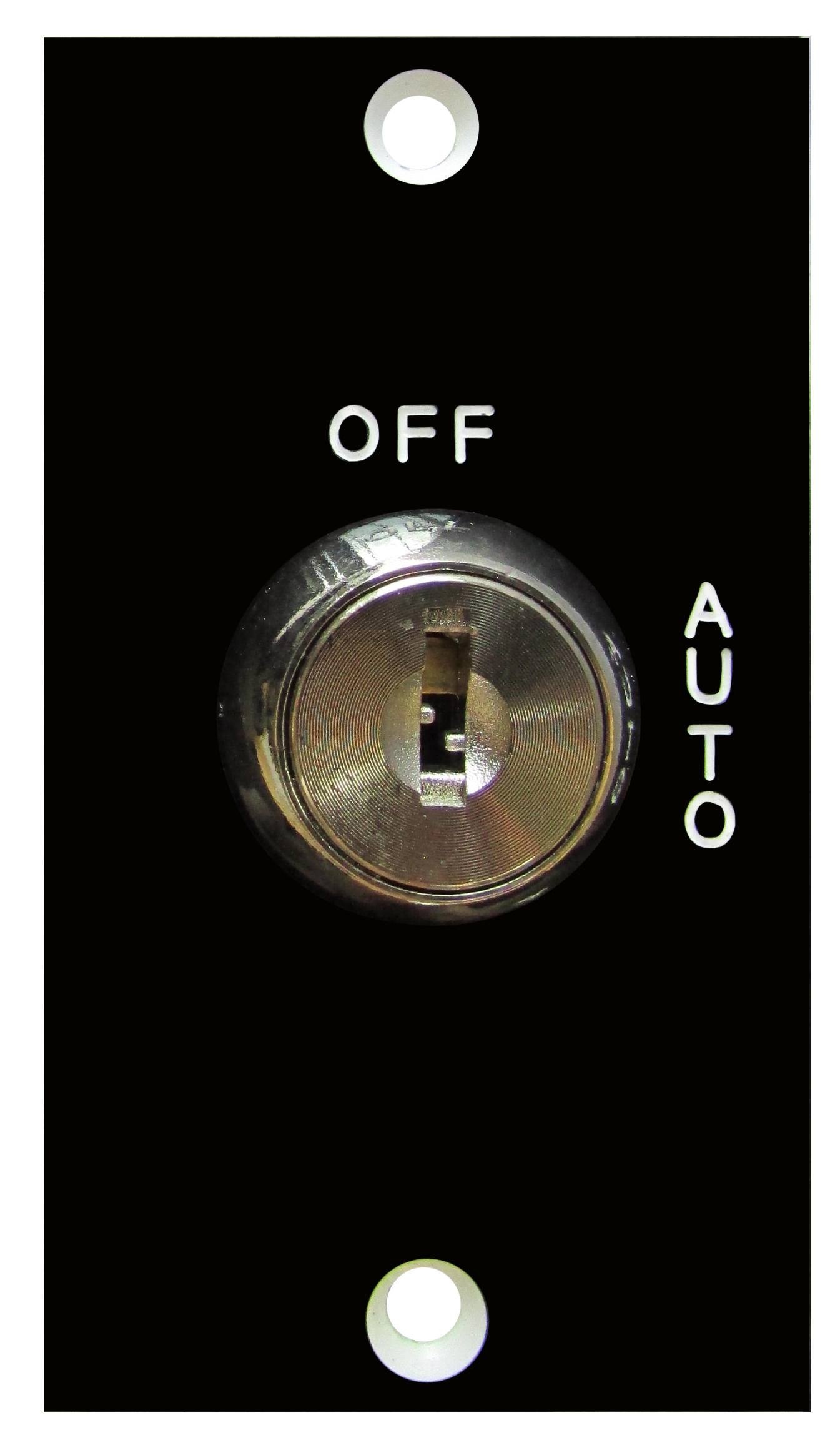

Mini faceplate key switch, 2-position maintained Off/Auto Variant record generated from manufacturer nomenclature (https://www.camdencontrols.com/products/CM_160_CM_170_CM_180_Series); price inherited from product #3556 pending owner confirmation.
Mini faceplate key switch, 2-position maintained Off/Auto Variant record generated from manufacturer nomenclature (https://www.camdencontrols.com/products/CM_160_CM_170_CM_180_Series); price inherited from product #3556 pending owner confirmation.
| Low-voltage wiring | Required |
|---|---|
| Basis | Structured, independently qualified product connection evidence |
| Preparation | Mount the compact lamacoid faceplate directly in the aluminum jamb or operator header. The complete assembly includes mounting hardware, keys and factory wire leads. The exact action drawing specifies switch depth 1 1/4" and minimum frame-hole diameter 1 1/8"; check the actual box or frame and faceplate clearance before cutting. |
| Electrical | For the selected low-voltage operator circuit, the typical OFF/AUTO installation uses black and blue leads, two external circuit conductors. Black connects red in OFF and blue in AUTO. The independent second pole has green common, orange in OFF and brown in AUTO. Per used pole, common plus one selected throw uses two conductors; common plus both throws uses three. Preserve the actual controller and activation-device circuit; do not bridge independent commons. The diagram contact rating is not a switch power-supply requirement. Select field cable type, gauge, shielding and physical routes from the connected equipment requirements and site layout. |
| Electrical wiring required | Yes |
| Conditional connections | Selected CM-160/21 black and red contact interface: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field type, gauge, shielding and physical cable-run quantity unspecified. Factory six-inch leads are distinct.; endpoints Selected low-voltage external circuit to CM-160/21 black and red; when Installation configuration is If this pole and these throws are selected: black and red. Alternatives on the same pole are not additive; the second pole is independent and optional to use.; Selected CM-160/21 black and blue contact interface: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field type, gauge, shielding and physical cable-run quantity unspecified. Factory six-inch leads are distinct.; endpoints Selected low-voltage external circuit to CM-160/21 black and blue; when Installation configuration is If this pole and these throws are selected: black and blue. Alternatives on the same pole are not additive; the second pole is independent and optional to use.; Selected CM-160/21 black, red and blue contact interface: cable runs quantity unspecified; 3 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field type, gauge, shielding and physical cable-run quantity unspecified. Factory six-inch leads are distinct.; endpoints Selected low-voltage external circuit to CM-160/21 black, red and blue; when Installation configuration is If this pole and these throws are selected: black, red and blue. Alternatives on the same pole are not additive; the second pole is independent and optional to use.; Selected CM-160/21 green and orange contact interface: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field type, gauge, shielding and physical cable-run quantity unspecified. Factory six-inch leads are distinct.; endpoints Selected low-voltage external circuit to CM-160/21 green and orange; when Installation configuration is If this pole and these throws are selected: green and orange. Alternatives on the same pole are not additive; the second pole is independent and optional to use.; Selected CM-160/21 green and brown contact interface: cable runs quantity unspecified; 2 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field type, gauge, shielding and physical cable-run quantity unspecified. Factory six-inch leads are distinct.; endpoints Selected low-voltage external circuit to CM-160/21 green and brown; when Installation configuration is If this pole and these throws are selected: green and brown. Alternatives on the same pole are not additive; the second pole is independent and optional to use.; Selected CM-160/21 green, orange and brown contact interface: cable runs quantity unspecified; 3 conductor(s); wire type not documented; size unspecified; shielding unspecified; rating Field type, gauge, shielding and physical cable-run quantity unspecified. Factory six-inch leads are distinct.; endpoints Selected low-voltage external circuit to CM-160/21 green, orange and brown; when Installation configuration is If this pole and these throws are selected: green, orange and brown. Alternatives on the same pole are not additive; the second pole is independent and optional to use. |
